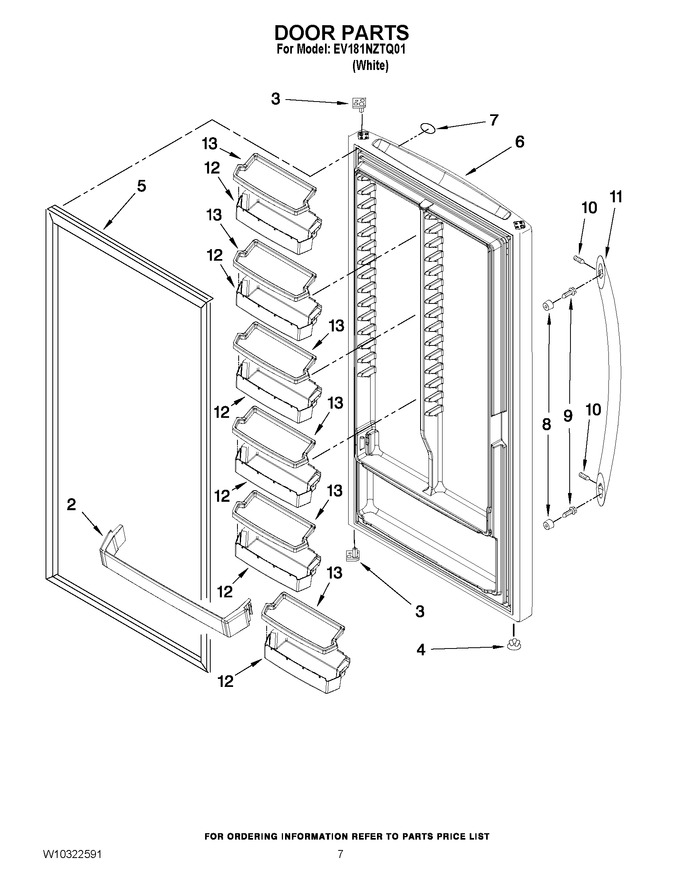

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 8210379 | Rail, Door |
|
- | |||||
| 3 | 8210400 | Stop, Door |
|
- | |||||
| 4 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 5 | WP4-65151-002 | Gasket, Door (Replaces: 8210339) |
|
$ 339.42 | |||||
| 6 | W10628655 | Door Assembly (includes Interior Door Panel) (Replaces: 4-82827-078) |
|
$ 531.33 | |||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 8 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.69 | ||||
| 9 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.57 | |||||
| 10 | W11366418 | Screw (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 11 | WPW10127761K | Handle (includes Item 10) (Replaces: 4-83028-001) |
|
$ 176.40 | |||||
| 12 | 8210380 | Bin Body |
|
- | |||||
| 13 | 8210383 | Bin Cover |
|
$ 35.04 |
