SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet

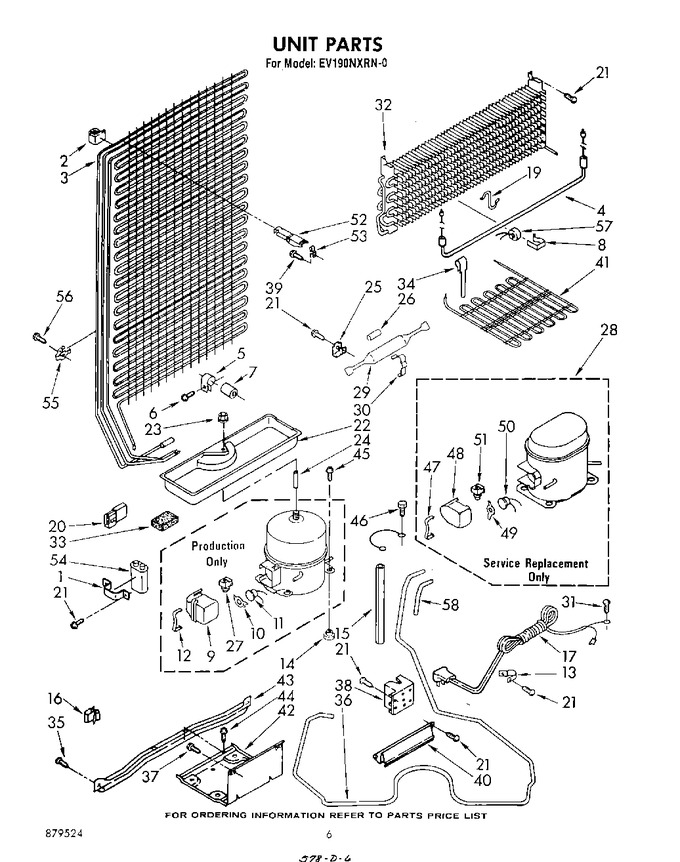

04 - Unit


05 - Liner


06 - Shelf And Basket


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP43449		Clamp, Capacitor   (Replaces: 1108137)				$ 6.49
2	1103640		Bumper (2)		Appelez-nous	-
3	1100568		Condenser & Precooler Assembly		Appelez-nous	-
4	1114706		Heater, Defrost		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
7	938368		Dampener		Appelez-nous	-
8	513584		Clamp		Appelez-nous	-
9	943496		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
10	943494		Spring, Overload (used W/original Compressor)		Appelez-nous	-
11	1108188		Overload (used W/original Compressor)		Appelez-nous	-
12	943497		Strap, Cover (used W/original Compressor)		Appelez-nous	-
13	549193		Clamp				$ 14.06
14	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
15	1108536		Sleeve, Heat Exchanger		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	1100646		Cord, Service		Appelez-nous	-
19	548459		Clip, Heater		Appelez-nous	-
20	943646		Receptacle		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
22	942875		Tray, Evaporator		Appelez-nous	-
23	285002		Locknut   (Replaces: 489153)				$ 12.85
24	942816		Spacer		Appelez-nous	-
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	WP2262181		Relay (used W/original Compressor)   (Replaces: 1108190)				$ 128.78
28	482614		Compressor (includes Items 47, 48, 49, 50, & 51) (also Order 876765 Tube Kit)		Appelez-nous	-
29	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
30	547637		Clamp		Appelez-nous	-
31	488474		Screw, 8-32 X 3/8		Appelez-nous	-
32	1106705		Evaporator Assembly		Appelez-nous	-
33	301774		Sound, Pad		Appelez-nous	-
34	849689		Heat Prove		Appelez-nous	-
35	488973		Screw, 1/4 X 28 (2)		Appelez-nous	-
36	1106713		Heat Exchanger		Appelez-nous	-
37	W11693756		Screw, (4)   (Replaces: 487837)			Immediately	$ 14.76
38	1100606		Junction Box		Appelez-nous	-
39	488624		Screw, 8 X 3/8 (2)		Appelez-nous	-
40	1105630		Mounting Bracket (precooler)		Appelez-nous	-
41	1106702		Precooler		Appelez-nous	-
42	942860		Plate, Unit Mounting		Appelez-nous	-
43	943755		Rail, Unit Mounting		Appelez-nous	-
44	487883		Repair		Appelez-nous	-
44	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
45	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
46	303776		Screw, 8-32 X .312   (Replaces: 488879)		Appelez-nous	-
47	549342		Strap (used W/service & Original Compressor)		Appelez-nous	-
48	549505		Cover (used W/service & Original Compressor)		Appelez-nous	-
49	549086		Spring, Overload (used W/service & Original Compressor)		Appelez-nous	-
50	753526		Overload (used W/service & Original Compressor)		Appelez-nous	-
51	989509		Relay (used W/service & Original Compressor)		Appelez-nous	-
52	1100636		Stand-off, Cord		Appelez-nous	-
53	1100707		Clip, Mounting		Appelez-nous	-
54	1108075		Running Capacitor		Appelez-nous	-
55	1105406		Tube Clip (2)		Appelez-nous	-
56	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 487415)			Immediately	$ 11.87
57	WP4387499		Defrost, Bimetal   (Replaces: 942872)				$ 126.90
58	876764		Valve, Access(3/16``)			Immediately	$ 95.92
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 137.25
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
58	1114384		Sleeve, Top Heat Exchanger		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
