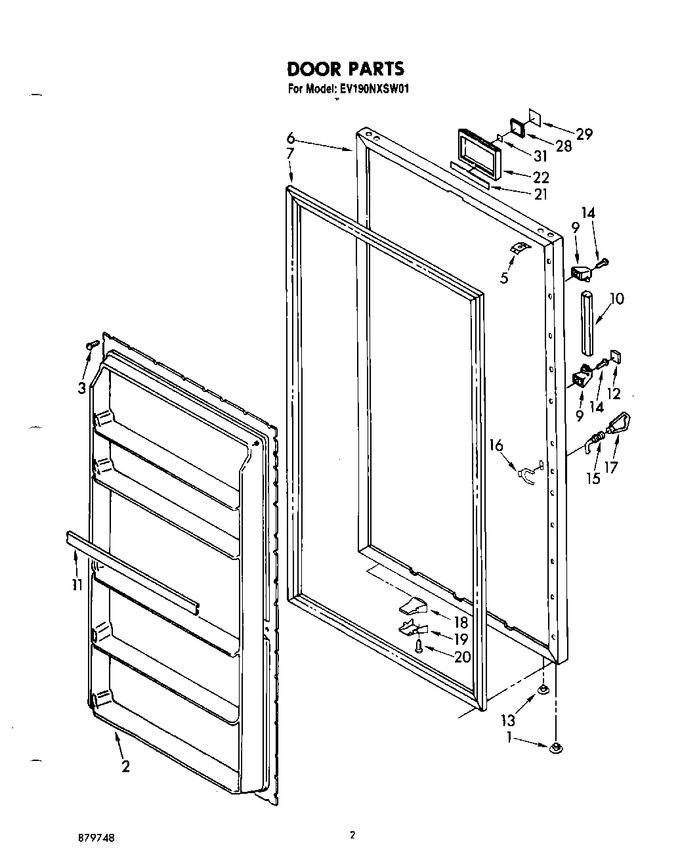

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	835974		Hole, Plug		Appelez-nous	-
2	1106761		Panel, Interior		Appelez-nous	-
3	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.56
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.62
5	WP939101		Anchor, Screw   (Replaces: 939101)				$ 7.09
6	1100594		Door, Exterior (white)		Appelez-nous	-
6	1100616		Door, Exterior (almond)		Appelez-nous	-
7	1114800		Gasket, Magnetic		Appelez-nous	-
9	1106767		End, Handle		Appelez-nous	-
10	1104123		Handle, Center		Appelez-nous	-
11	1114825		Trim, Door (4)		Appelez-nous	-
11	1114826		Trim, Door (1)		Appelez-nous	-
12	1110070		Cover, End (2)		Appelez-nous	-
13	534927		Hole Plug (white)		Appelez-nous	-
14	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
15	940165		Lock		Appelez-nous	-
16	983465		Clip, Lock		Appelez-nous	-
17	WP842177		Key, Lock   (Replaces: 842177)				$ 7.66
18	1103638		Transmitter, Light		Appelez-nous	-
19	1103726		Cover, Light Transmitter		Appelez-nous	-
20	489132		Screw		Appelez-nous	-
21	1104030		Tape Strip (1/2 Wide)		Appelez-nous	-
21	1104031		Tape Strip (3/4 Wide)		Appelez-nous	-
22	1104052		Container (white)		Appelez-nous	-
22	1104054		Container (almond)		Appelez-nous	-
28	945116		Nameplate (includes Items 29 & 31)		Appelez-nous	-
29	945108		Insert		Appelez-nous	-
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
31	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
31	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
31	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
31	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
31	991259		Tape Strip		Appelez-nous	-
31	350942		Xprimer, White (13 Oz. Spray Can)   (Replaces: 206922)				$ 84.73
31	206925		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
31	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 799339)				$ 53.90
31	350930		Xenamel, White (13 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 36.11
31	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	799351		Thinner, Blend (1 Gal.)		Appelez-nous	-
31	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
31	515393		Transformer, Stepdown (230-115 Volt)		Appelez-nous	-
31	833938		Kit, Terminal Connector				$ 7.62
31	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
31	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 218.83
31	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
31	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
31	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
31	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
	LIT1104044		Inventory Packet Assembly		Appelez-nous	-
	LIT879748		Parts List		Appelez-nous	-
	LIT656493		How To Freeze Booklet		Appelez-nous	-
	LIT1114830		Energy Label		Appelez-nous	-
	LIT1114710		Service & Wiring Sheet		Appelez-nous	-
	LIT1114828		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
