SELECT A DIAGRAM
02 - Door, Lit/optional
03 - Cabinet
04 - Unit
05 - Liner

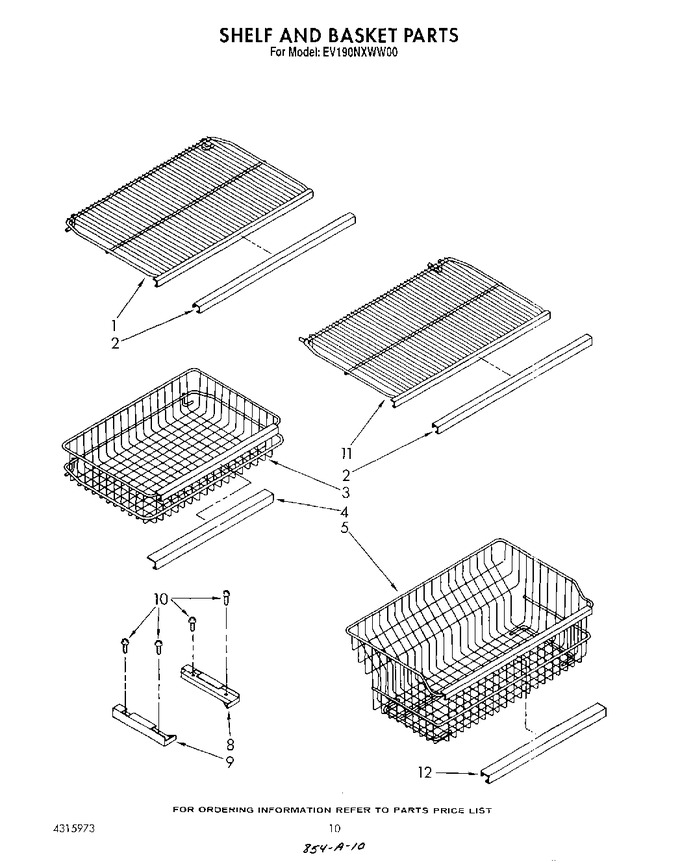

06 - Shelf And Basket
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1106724 | Shelf, Pullout |
|
- | |||||
| 2 | 1103650 | Trim, Snap-on |
|
- | |||||
| 3 | 1106776 | Basket, Pullout |
|
- | |||||
| 4 | 1103652 | Trim, Snap-on |
|
- | |||||
| 5 | 1106924 | Basket, Lower |
|
- | |||||
| 8 | 986382 | Slide, Basket (r.s) |
|
- | |||||
| 9 | 986383 | Slide, Basket (left Side) |
|
- | |||||
| 10 | W11693756 | Screw, (4) (Replaces: 487042) |
|
Immediately | $ 14.76 | ||||
| 11 | 1106727 | Shelf, Wire |
|
- | |||||
| 12 | 1103648 | Trim, Snap-on |
|
- |
