SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Unit

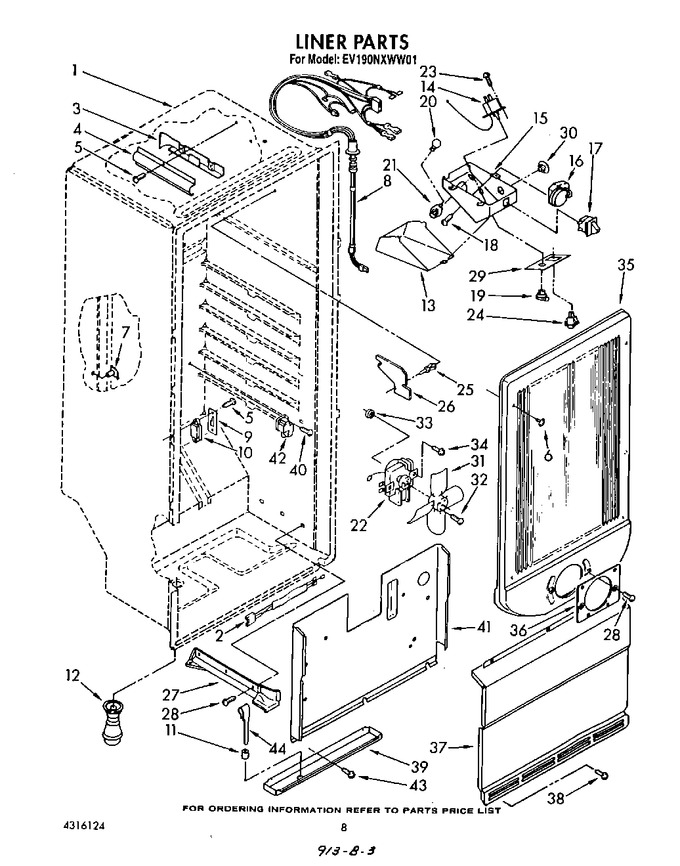

05 - Liner


06 - Shelf And Basket


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1114705		Harness, Motor		Appelez-nous	-
3	1100600		Wire, Cover (rear)		Appelez-nous	-
4	1100601		Wire, Cover (front)		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
6	489115		Fastener, Snap				$ 5.51
7	1100445		Spacer		Appelez-nous	-
8	1127871		Wiring Assembly, Control Box		Appelez-nous	-
9	940167		Strike, Lock		Appelez-nous	-
10	940168		Lock Strike, Back-up		Appelez-nous	-
11	836123		Extension, Drain Hole		Appelez-nous	-
12	942768		Fitting, Drain		Appelez-nous	-
13	1100466		Light, Lens		Appelez-nous	-
14	VF3		Thermostat   (Replaces: 1110500)				$ 38.40
15	1100458		Control Box		Appelez-nous	-
16	CC901		Timer, Defrost   (Replaces: 1127570)			Immediately	$ 45.20
17	W11384469		Switch, Rocker   (Replaces: 549702)			Immediately	$ 35.18
18	WP487353		Screw, 6-20 X 1/2 (2)   (Replaces: 488693)				$ 7.16
19	1100467		Control Knob, Thermostat		Appelez-nous	-
20	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 10.17
21	4387478		Socket   (Replaces: 851067)			Immediately	$ 104.10
22	1106739		Motor, Fan		Appelez-nous	-
23	488974		Screw, 8 X 1/2a		Appelez-nous	-
24	1100853		Toggle, Switch		Appelez-nous	-
25	939962		Rivet, Plastic (2)				$ 11.18
26	1100609		Electric Shield		Appelez-nous	-
27	1100585		Tube, Entry Cover (bottom)		Appelez-nous	-
28	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 13.28
29	1100789		Insert, Control Panel		Appelez-nous	-
30	940014		Hole Plug				$ 18.33
31	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 83.03
32	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 220.32
33	531933		Grommet				$ 5.70
34	489168		Screw, 8 X 15/16 (2)		Appelez-nous	-
35	1106737		Air, Duct		Appelez-nous	-
36	1106741		Fan, Mounting Cover		Appelez-nous	-
37	1106742		Evaporator, Cover		Appelez-nous	-
38	WP488729		Screw   (Replaces: 489196)			Immediately	$ 7.45
39	1118717		Drain, Pan		Appelez-nous	-
40	WP489478		Screw   (Replaces: 489242)				$ 7.36
41	1118718		Heat, Shield		Appelez-nous	-
42	942842		Terminal Block		Appelez-nous	-
43	WPW10141645		Screw, 8 X 1/2 (3)   (Replaces: 489084)				$ 7.25
44	849689		Heat, Probe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
