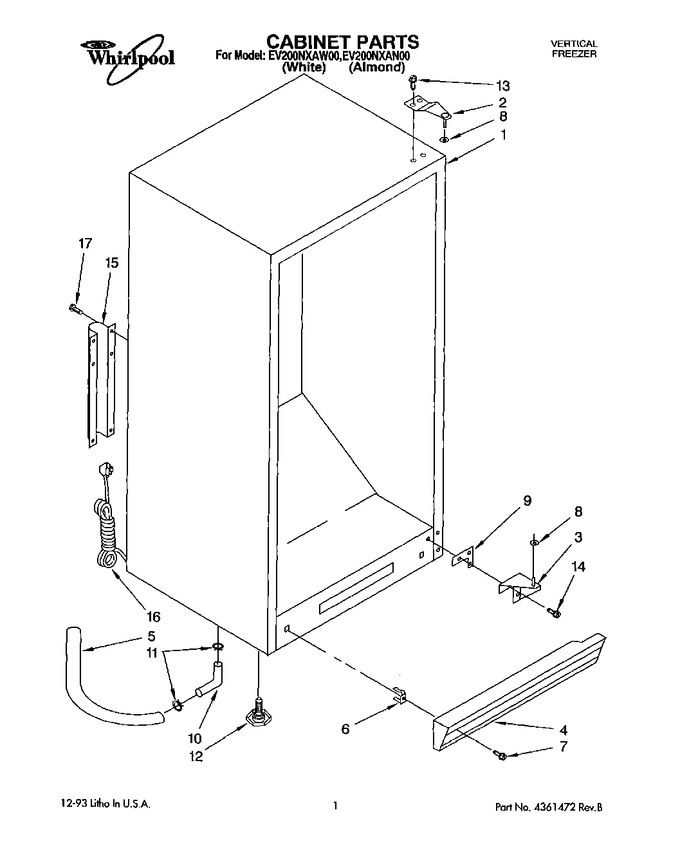

01 - Cabinet, Lit\optional
02 - Liner
03 - Door
04 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4356915 | Top, Hinge Almond |
|
- | |||||
| 2 | 4356984 | Top, Hinge (white) |
|
- | |||||
| 3 | 4356953 | Bottom, Hinge (almond) |
|
- | |||||
| 3 | 4356993 | Bottom, Hinge (white) |
|
- | |||||
| 4 | 4357013 | Grille ((black)) |
|
- | |||||
| 4 | 4356967 | Grille (coffee) |
|
- | |||||
| 5 | 4356937 | Drain Hose |
|
- | |||||
| 6 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 10.35 | ||||
| 7 | WP489478 | Screw (Replaces: 4356805) |
|
$ 7.36 | |||||
| 8 | W10851331 | Washer (3) (Replaces: 4356801) |
|
$ 9.51 | |||||
| 9 | 4356828 | Shim, Bottom |
|
$ 12.40 | |||||
| 10 | 4356825 | Tube, Drain |
|
- | |||||
| 11 | 4356827 | Clamp Hose |
|
- | |||||
| 12 | W11117769 | Leg, Leveler (Replaces: 4356869) |
|
Immediately | $ 17.43 | ||||
| 13 | WP489478 | Screw (Replaces: 4356810) |
|
$ 7.36 | |||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 15.73 | |||||
| 15 | 4356985 | Cover, Suction Line |
|
- | |||||
| 16 | 4356986 | Power Cord |
|
- | |||||
| 17 | 350941 | Leveler, Enamel (13 Oz. Spray Can) |
|
- | |||||
| 17 | 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | |||||
| 17 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 17 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 17 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 17 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 17 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 17 | WP4-81049-001 | Screw (Replaces: 4356971) |
|
$ 344.30 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | ||||||
| LIT4356948 | Use & Care Guide |
|
- | ||||||
| LIT4357017 | Wiring Diagram |
|
- | ||||||
| LIT4361472 | Parts List |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 515393 | Transformer (115-230 Volt) |
|
- |
