02 - Cabinet

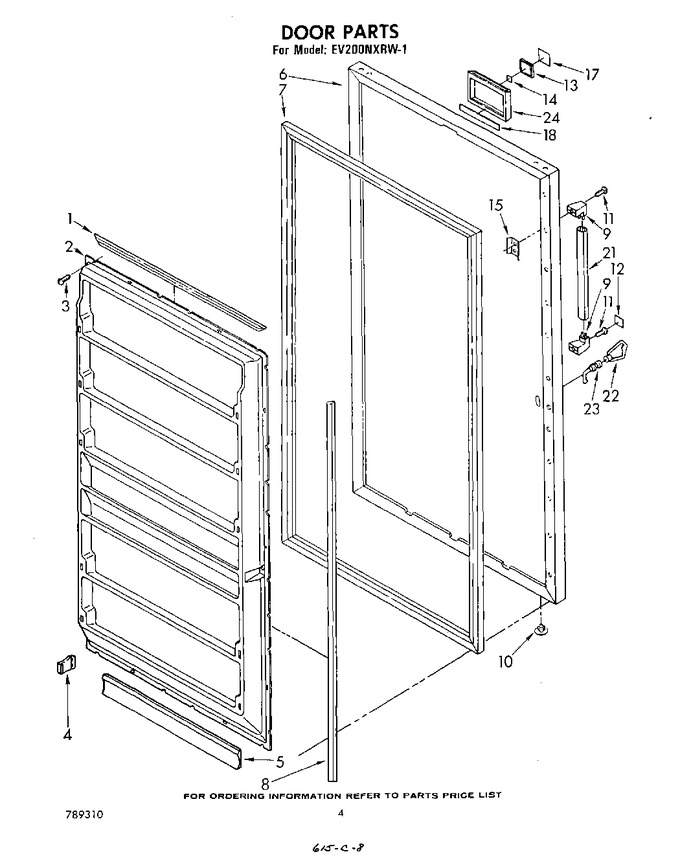

03 - Door , Lit/optional
04 - Unit
05 - Line
06 - Breaker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 836118 | Retainer, Gasket (2) (top & Bottom) |
|
- | |||||
| 2 | 942677 | Panel |
|
- | |||||
| 3 | WP489069 | Screw, 7 X 1/2 A (Replaces: 489101) |
|
Immediately | $ 7.56 | ||||
| 3 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.62 | ||||
| 4 | WP849996 | Retainer, Trim (10) (Replaces: 943824) |
|
$ 7.16 | |||||
| 5 | 1104084 | Trim, Shelf (5) |
|
- | |||||
| 6 | 942619 | Door, Exterior (white) |
|
- | |||||
| 6 | 942623 | Door, Exterior (almond) |
|
- | |||||
| 7 | 2188438A | Gasket, Magnetic (Replaces: 942678) |
|
- | |||||
| 8 | 836120 | Retainer, Gasket (side) (2) |
|
- | |||||
| 9 | 946737 | End, Handle |
|
- | |||||
| 10 | 534927 | Plug, Hole (2) |
|
- | |||||
| 11 | 488987 | Screw, 8-15 X 1-5/8 |
|
- | |||||
| 12 | 946742 | Cover, Handle End |
|
- | |||||
| 13 | 945116 | Nameplate (includes Items 14 & 17) |
|
- | |||||
| 14 | 991259 | Tape Strip |
|
- | |||||
| 15 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.09 | |||||
| 17 | 945108 | Insert, Nameplate |
|
- | |||||
| 18 | 1104030 | Tape Strip (1/2 Wide) |
|
- | |||||
| 18 | 1104031 | Tape Strip (3/4 Wide) |
|
- | |||||
| 21 | 1104041 | Handle, Center |
|
- | |||||
| 22 | 941380 | Key |
|
- | |||||
| 23 | 941379 | Lock |
|
- | |||||
| 24 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 24 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | |||||
| 24 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 24 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 24 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 24 | 1104052 | Container (white) |
|
- | |||||
| 24 | 1104054 | Container (almond) |
|
- | |||||
| 24 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 24 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 24 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 86.78 | ||||
| 24 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 218.83 | |||||
| 24 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | |||||
| 24 | 511881 | Lacquer, Bright Aluminum (12 Oz. Spray Can) |
|
$ 278.35 | |||||
| 24 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 74.13 | |||||
| 24 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 24 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| 24 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| LIT1104037 | Energy Label |
|
- | ||||||
| LIT1101097 | Service & Wiring Sheet |
|
- | ||||||
| LIT1104035 | Use & Care Guide |
|
- | ||||||
| LIT1104044 | Inventory Packet Assembly |
|
- | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 799339) |
|
$ 53.90 | ||||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | ||||||
| LIT789310 | Parts List |
|
- | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 36.11 | |||||
| LIT656493 | How To Freeze Booklet |
|
- |
