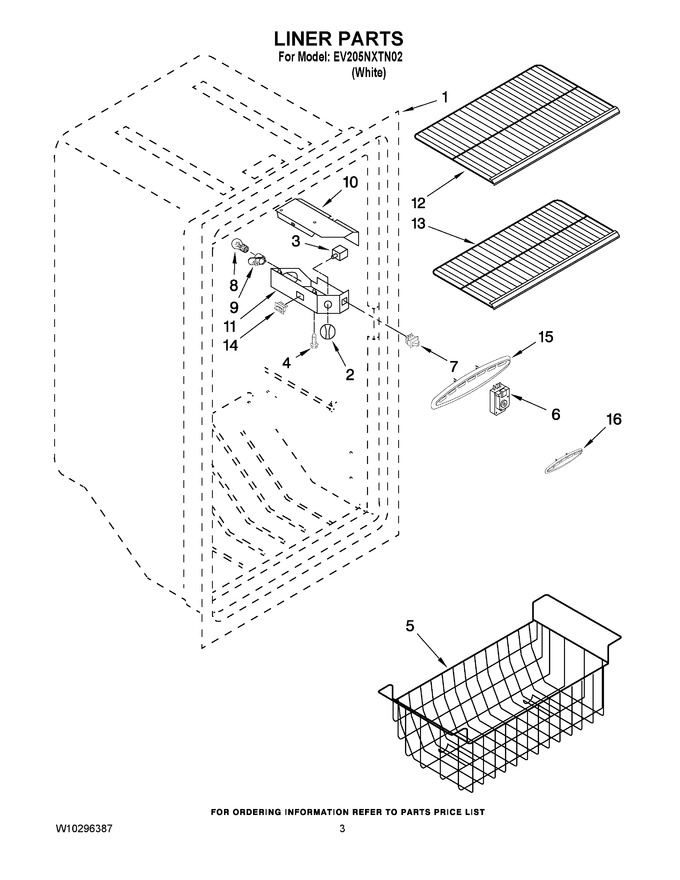

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 27.09
3	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 231.06
4	WPW10068250		Screw   (Replaces: 4357042)				$ 3.84
5	4390632		Basket, Wire		Appelez-nous	-
6	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 179.23
7	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 35.18
8	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 10.17
9	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 101.46
10	8210351		Shield, Light				$ 42.03
11	8210349		Box, Control				$ 33.01
12	WP4-82634-001		Shelf, Upper Wire   (Replaces: W10164533)				$ 140.00
13	WP4-82977-001		Shelf, Lower Wire   (Replaces: W10258752)				$ 137.48
14	W10164514		Switch, Alarm		Appelez-nous	-
15	W10258753		Air Diffuser, Upr		Appelez-nous	-
16	4-82573-002		Air Diffuser, Lwr (illuminated)   (Replaces: W10258754)		Appelez-nous	-
