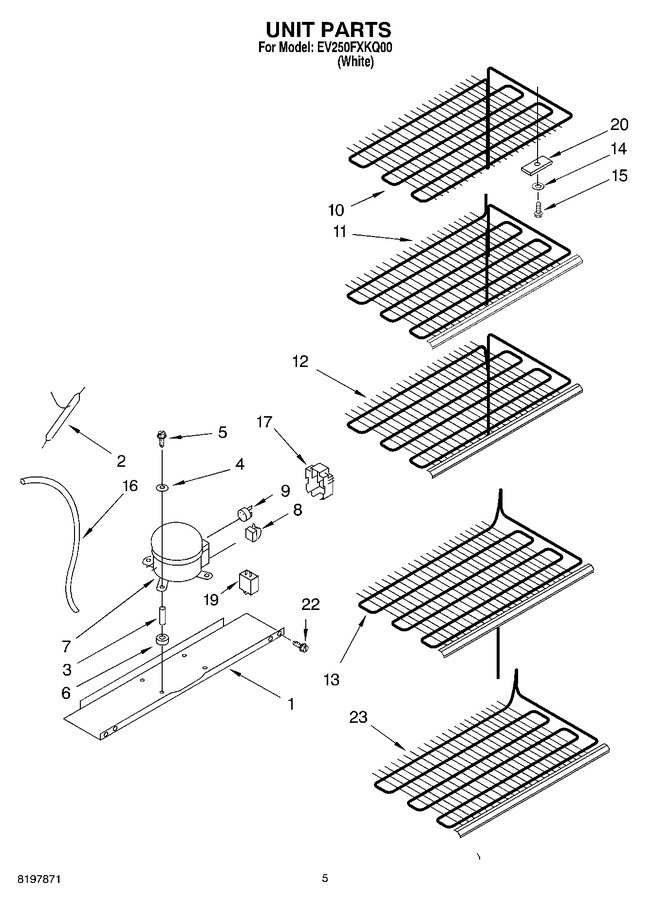

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Unit


04 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390807		Pan, Compressor Mounting		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
3	4356846		Sleeve, Grommet				$ 13.50
4	4356847		Washer		Appelez-nous	-
5	4356852		Screw, Compressor Mounting				$ 6.57
6	4356335		Grommet		Appelez-nous	-
7	W10309995		Compressor (includes Items 6, 8, 9, 17 & 18)   (Replaces: 4390806)				$ 634.08
8	4356738		Relay				$ 53.17
9	4390808		Overload		Appelez-nous	-
10	4390810		Evaporator Top		Appelez-nous	-
11	4390811		Evaporator Shelf		Appelez-nous	-
12	4390812		Evaporator Shelf		Appelez-nous	-
13	4390813		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357223)				$ 8.23
16	4390809		Heat Exchanger		Appelez-nous	-
17	4356777		Cover		Appelez-nous	-
19	3-35956-013		Capacitor   (Replaces: 4390674)				$ 109.01
20	4356854		Clamp		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.50
23	4390814		Evaporator Shelf, Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
