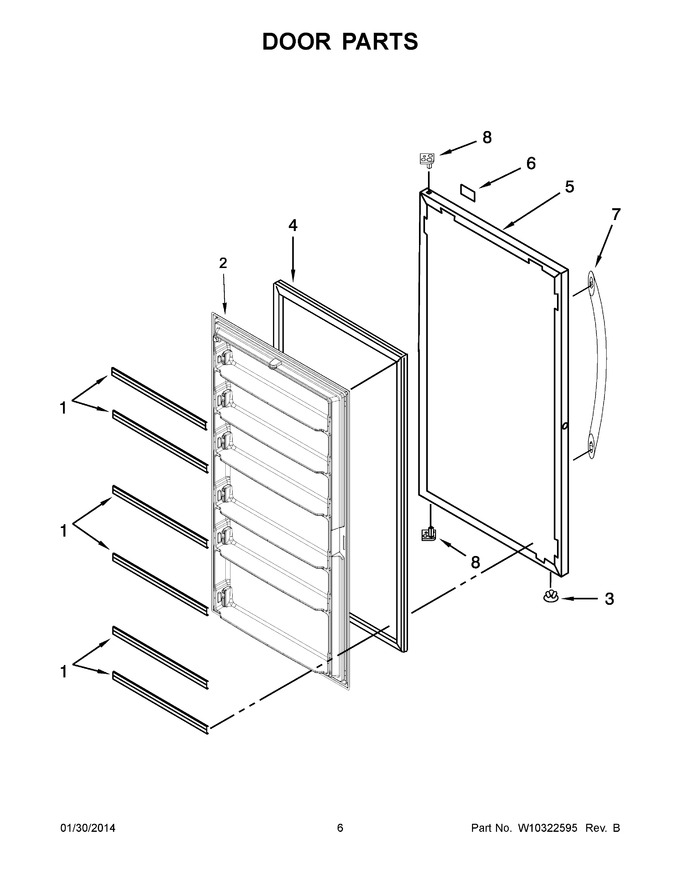

04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10450648 | Trim, Door (Replaces: 4390805) |
|
- | |||||
| 2 | W10346178 | Door Liner |
|
- | |||||
| 3 | 3-24898-007 | Plug, Vent (Replaces: 4357067) |
|
$ 10.21 | |||||
| 4 | WP4-81679-001 | Gasket, Door (Replaces: 4-81679-001) |
|
$ 313.56 | |||||
| 5 | W10340544 | Door Exterior |
|
$ 553.06 | |||||
| 6 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 7 | WPW10127761K | Handle, Door (white) (Replaces: 3-83029-001) |
|
$ 176.40 | |||||
| 8 | 8210400 | Stop, Door |
|
- |
