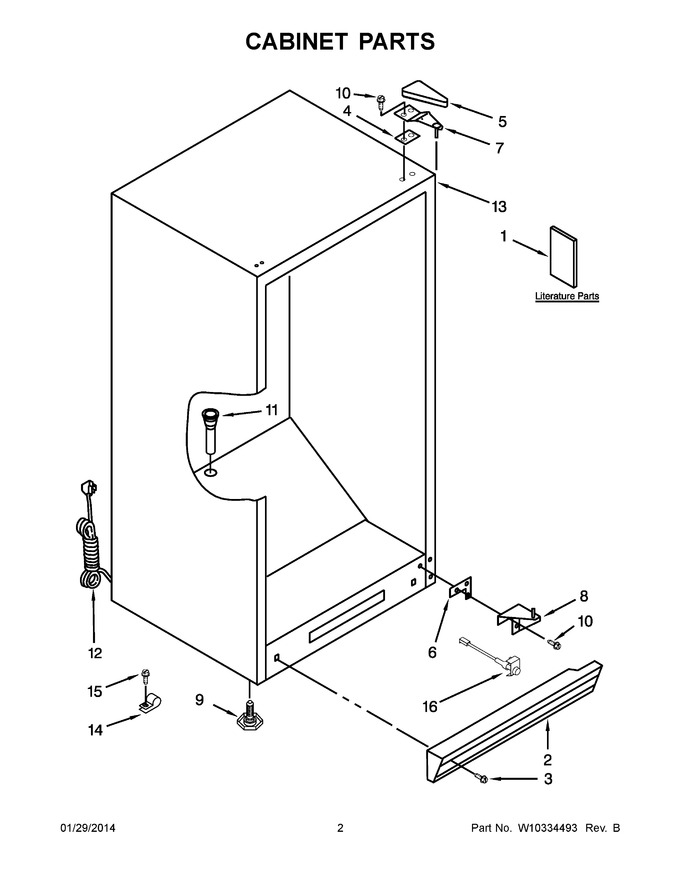

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326811		Energy Label/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	4-80502-116		Trim, Toe (white)				$ 141.08
3	WP489478		Screw   (Replaces: 4357243)				$ 7.36
4	4390489		Shim, Hinge				$ 6.57
5	4357279		Cover, Hinge (white)				$ 46.56
6	4390489		Shim, Hinge				$ 6.57
7	2-81016-105		Top Hinge (white)				$ 38.92
8	8210238		Hinge, Bottom   (Replaces: W10201501)				$ 40.19
9	WP3-82710-001		Leg, Leveler (white)   (Replaces: W10205066)			Immediately	$ 18.29
10	WP8204624		Screw   (Replaces: 4356830)				$ 15.73
11	W10164544		Tube, Drain		Appelez-nous	-
12	8210375		Cord, Power		Appelez-nous	-
13	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	4357159		Clamp, Tube		Appelez-nous	-
15	WP489478		Screw   (Replaces: 4357243)				$ 7.36
16	4390905		Power Light Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
