SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

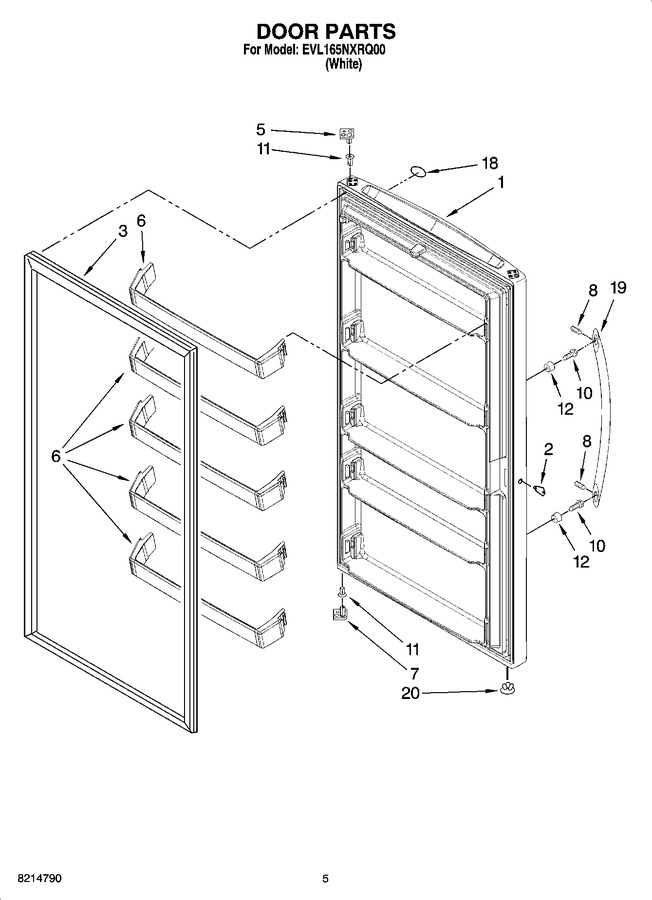

03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210358		Door Assembly (white (includes Interior Door Liner))		Appelez-nous	-
2	WP4356840		Key, Door   (Replaces: 4356840)				$ 11.28
3	WP4-65151-001		Gasket (white)   (Replaces: 8210340)				$ 354.52
5	8210401		Stop, Door (upper)		Appelez-nous	-
6	W10737497		Rail, Door (5)   (Replaces: 8210385)				$ 96.74
7	8210400		Stop, Door (lower)		Appelez-nous	-
8	8533976		Screw, Set				$ 8.35
10	WP488163		Screw   (Replaces: 488208)				$ 7.92
11	4390731		Bushing, Hinge				$ 19.69
12	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 9.66
18	4390656		Nameplate (white)		Appelez-nous	-
19	WP2254600W		Handle Assembly (includes Item 8)   (Replaces: 2317777W)				$ 246.90
20	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34

    View Diagram in Separate Window       Print Part List
