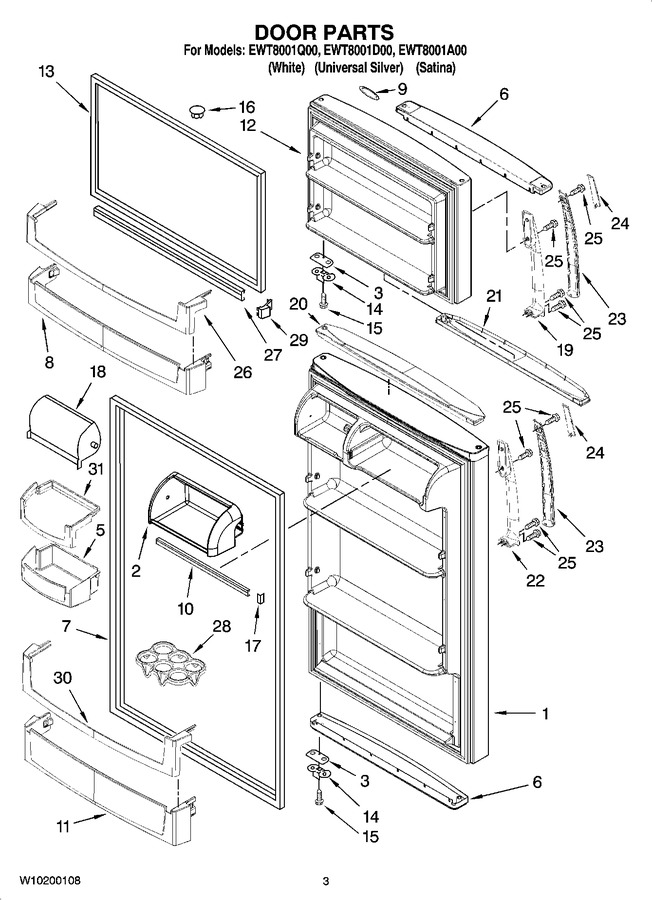

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2323816W | Refrigerator Door (includes Items 6 & 7) (white) |
|
- | |||||
| 1 | 2323816D | Refrigerator Door (includes Items 6 & 7) (universal Silver) |
|
- | |||||
| 1 | 2323816L | Refrigerator Door (includes Items 6 & 7) (satina) |
|
- | |||||
| 2 | 2316052 | Utility Comprtmnt. |
|
- | |||||
| 3 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 5 | 2324274 | Bin-door (3) |
|
- | |||||
| 6 | 2316409W | Endcap, Rc & Fc (white) |
|
- | |||||
| 6 | 2316409D | Endcap, Rc & Fc (silver) |
|
- | |||||
| 7 | WP2319264W | Door Gasket,rc (white) (Replaces: 2264727) |
|
Immediately | $ 296.17 | ||||
| 8 | 2324265 | Trivet (fc) |
|
- | |||||
| 9 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 10 | 2324270 | Trim, Door Shelf |
|
- | |||||
| 11 | 2324269 | Trivet (rc) |
|
- | |||||
| 12 | 2323817L | Freezer Door (includes Items 6 & 13) (satina) |
|
- | |||||
| 12 | 2323817D | Freezer Door (includes Items 6 & 13) (universal Silver) |
|
- | |||||
| 12 | 2323817W | Freezer Door (includes Items 6 & 13) (white) |
|
$ 504.55 | |||||
| 13 | WP2319263W | Door Gasket,fc (white) (Replaces: 2264726) |
|
Immediately | $ 238.68 | ||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 16 | WP2254517 | Hole Plug (silver) (Replaces: 2212648D) |
|
Immediately | $ 21.91 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 17 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 18 | 2325501 | Compartment Door |
|
- | |||||
| 19 | 2319301D | Handle, Fc (silver) |
|
- | |||||
| 19 | 2319301W | Handle-fc (white) |
|
- | |||||
| 20 | 2316411W | End Cap-handle-rc (white) |
|
- | |||||
| 20 | 2316411D | End Cap-handle-rc (silver) |
|
- | |||||
| 21 | 2316410W | End Cap-handle-fc (white) |
|
- | |||||
| 21 | 2316410D | End Cap-handle-fc (silver) |
|
- | |||||
| 22 | 2319300D | Handle, Rc (silver) |
|
- | |||||
| 22 | 2319300W | Handle, Rc (white) |
|
$ 36.73 | |||||
| 23 | 2319302W | Cap-handle Rc & Fc (white) |
|
- | |||||
| 23 | 2319302D | Cap-handle Rc & Fc (silver) |
|
- | |||||
| 24 | 2319303C | Insert-cap-handle |
|
- | |||||
| 25 | WP489491 | Screw (Replaces: W10002730) |
|
$ 6.57 | |||||
| 26 | 2264943 | Collar-trivet-fc |
|
- | |||||
| 27 | 2324266 | Trim-door-fc |
|
- | |||||
| 28 | 2325519 | Egg Rack |
|
- | |||||
| 29 | WP2156003 | End Cap-trim-fc (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 30 | 2264930 | Collar-trivet-rc |
|
- | |||||
| 31 | 2264920 | Collar, Bin-rc |
|
- |
