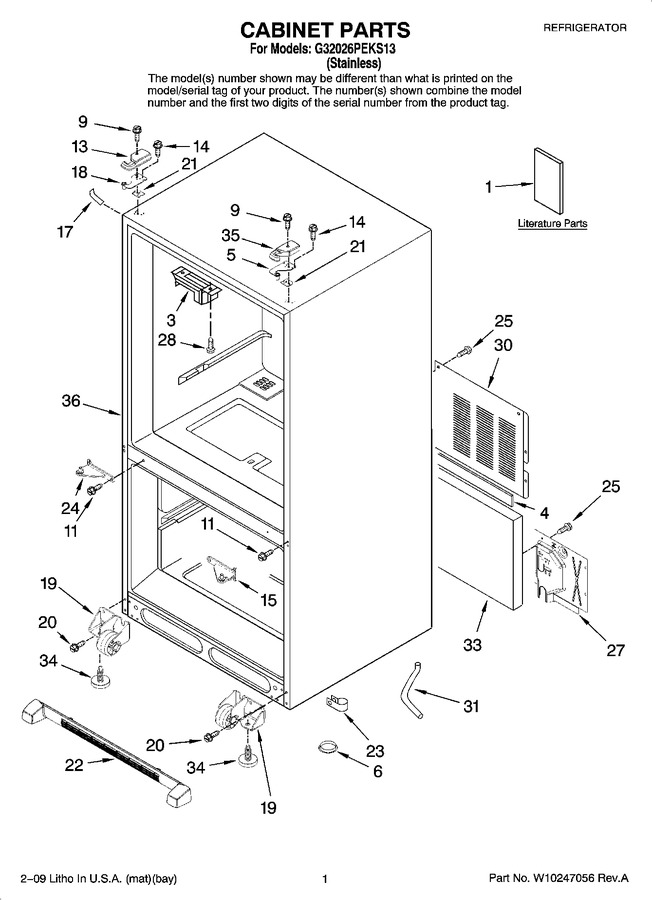

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12827959 | Tech Sheet |
|
- | |||||
| 1 | 12828189 | Owners Manual |
|
- | |||||
| 3 | WP67003405 | Block, Pivot (Replaces: 67003405) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | WP12566606ED | Hinge, Top Right (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 6 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 67006380) |
|
$ 14.72 | |||||
| 13 | 8208248 | Cover, Left Hinge (black) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center (rt) (black) (Replaces: 13000002ED) |
|
$ 91.53 | |||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 18 | WP12566607ED | Hinge, Top Left (Replaces: 12566605ED) |
|
$ 91.09 | |||||
| 19 | W10137532 | Roller, Foot (2) (left) |
|
- | |||||
| 19 | W10137533 | Roller, Foot (2) (right) |
|
- | |||||
| 20 | 67006564 | Screw |
|
Immediately | $ 8.15 | ||||
| 21 | 8208257 | Shim, Hinge |
|
- | |||||
| 22 | W10131134 | Grille, Toe (black) |
|
$ 53.25 | |||||
| 23 | 67001067 | Clip, Drain Tube |
|
$ 9.66 | |||||
| 24 | W10918164 | Hinge, Center (lt) (black) (Replaces: 13000001ED) |
|
$ 91.53 | |||||
| 25 | 67006425 | Screw (10) |
|
Immediately | $ 7.30 | ||||
| 27 | W10131907 | Cover, Water Valve |
|
- | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 67006669) |
|
Immediately | $ 8.36 | ||||
| 30 | 67002230 | Cover, Unit |
|
- | |||||
| 31 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 33 | 67003796 | Insulation, Sound |
|
$ 19.27 | |||||
| 34 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | 12684202B | Cover, Right Hinge (black) |
|
- |
