Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12732427WQ Door, Left (white) Appelez-nous -
2 13024017WQ Door, Right (white) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 WPW10324005 Bin, Shelf (3) (medium)   (Replaces: 12557214) Special Order $ 69.98

6 12722811WKV Mullion, Door (white) Appelez-nous -
7 W11311945 Screw   (Replaces: 12990204) Special Order $ 13.25

8 W10830189 Gasket, Door (2) (white)   (Replaces: W10163894) Special Order $ 255.07

9 WPW10179168 Handle, Door (right)   (Replaces: W10179168) Special Order $ 154.27

9 W10179171 Handle, Door (left) Special Order $ 77.64

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

11 12968202W Stop, Door (white) Special Order $ 62.36

12 66981-5 Nameplate Appelez-nous -
13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 10.72

15 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 7.34

16 WPW10289494 Bin, Shelf (2) (gallon)   (Replaces: 12699004) Special Order $ 78.82


    View Diagram in Separate Window     Print Icon   Print Part List

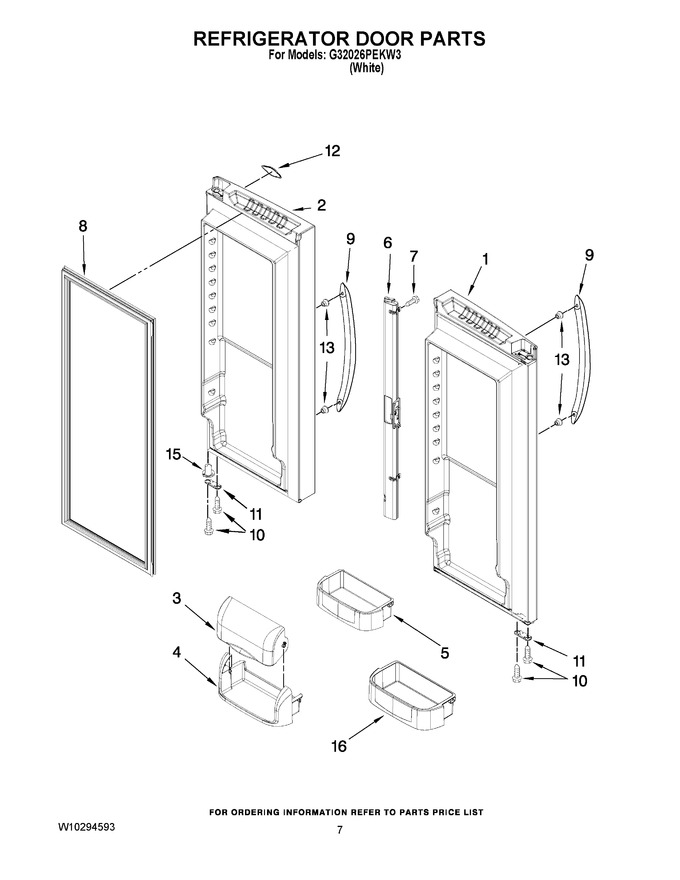

Diagram for G32026PEKW3
