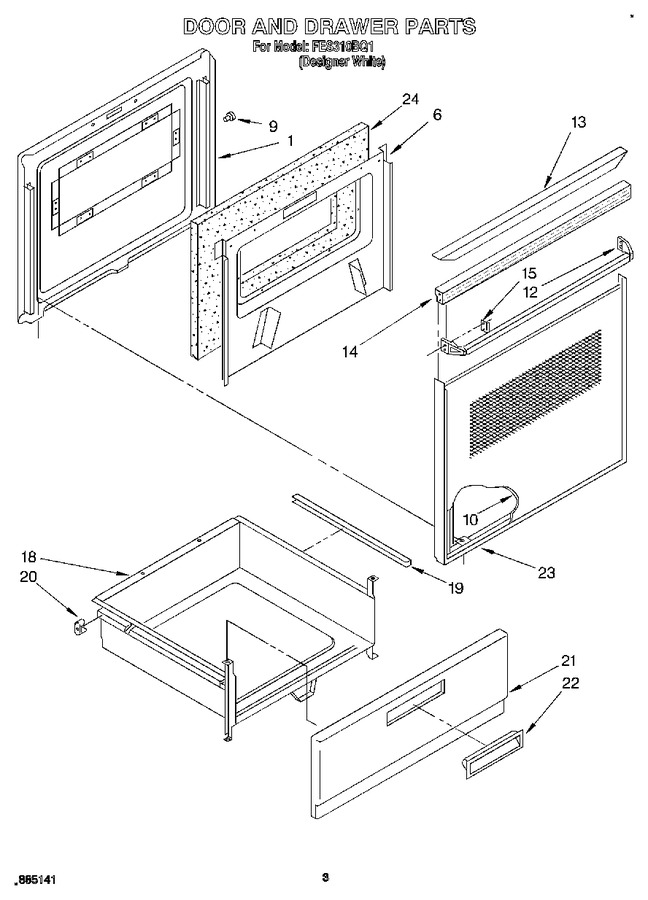

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Unit, Literature


05 - Oven


06 - Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172219		Liner, Door		Appelez-nous	-
6	3185647		Screw 8 X 3/8 (4)		Appelez-nous	-
6	3148160		Retainer, Insulation		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3149051		Glass, Panel		Appelez-nous	-
12	3184129		Handle, Door		Appelez-nous	-
12	WP308499		Pal-nut   (Replaces: 3169090)				$ 6.57
13	3188399		Screw (2)		Appelez-nous	-
13	3189001		Cap - Door		Appelez-nous	-
14	3169516		Top, Door		Appelez-nous	-
14	307748		Screw (2)		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 3393008)			Immediately	$ 7.08
20	307980		Glide, Rear (2)		Appelez-nous	-
21	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 313349)				$ 7.30
21	3169430		Panel, Drawer (white)		Appelez-nous	-
22	3150612		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw (2) 8a X 1/2   (Replaces: 313349)				$ 7.30
23	3188998		Frame, Door		Appelez-nous	-
23	3188403		Screw (4)		Appelez-nous	-
23	307748		Screw (3)		Appelez-nous	-
24	3147951		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
