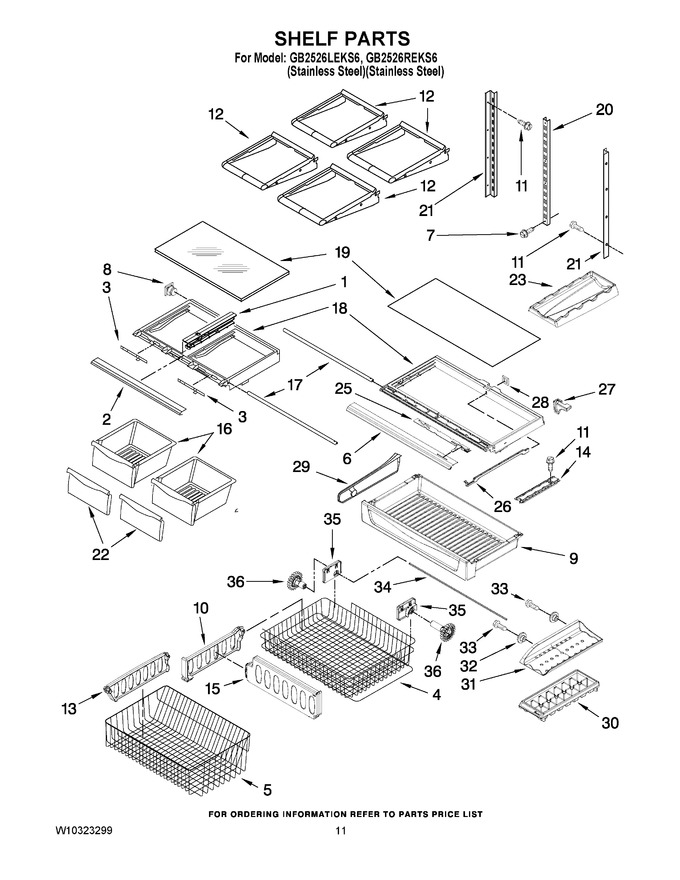

06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 12796401)			Immediately	$ 33.37
2	W10231344		Trim, Crisper				$ 58.15
3	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 8.20
4	WPW10348246		Basket, Freezer(upper)   (Replaces: W10209706)				$ 274.97
5	W10150039		Basket, Freezer (lower)				$ 128.38
6	W10231336		Trim, Pantry		Appelez-nous	-
7	W10215666		Screw (2)				$ 9.53
8	WP13062602		Support,crisper(2)   (Replaces: 13062602)				$ 84.87
9	12645021		Pan, Pantry		Appelez-nous	-
10	W10241046		Divider, Basket (upper)			Immediately	$ 29.19
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
12	12654610		Shelf, Glide		Appelez-nous	-
13	W10847995		Divider, Lower Basket   (Replaces: W10146440)				$ 92.48
14	WP67001719		Track-deli   (Replaces: 12531901)			Immediately	$ 8.99
15	W10171558		Divider, Upper Basket				$ 42.49
16	WP67004515		Pan, Crisper   (Replaces: 12804601SP)			Immediately	$ 176.72
17	WP12642303WD		Brace, Crisper (2)   (Replaces: 12642303WD)				$ 112.26
18	WP67003854		Frame, Crisper (2)   (Replaces: 12796301SP)			Immediately	$ 289.77
19	WP67006704		Glass, Crisper   (Replaces: 12204824)				$ 263.43
20	W10273463		Ladder, Center				$ 29.61
21	W10251969		Ladder, Side				$ 31.44
22	W11206718		Front-crisper Pan   (Replaces: 12643802SP)			Immediately	$ 324.43
23	67001656		Trivet-wine   (Replaces: 12525101)				$ 72.49
25	12531502		Slide,pantry		Appelez-nous	-
26	12531402		Bar, Control		Appelez-nous	-
27	WP12531601		Tunnel, Pantry   (Replaces: 12531601)				$ 11.04
28	12531701		Gasket, Pantry		Appelez-nous	-
29	12707602		Divider, Pantry		Appelez-nous	-
30	WP841180A		Tray, Ice Cube   (Replaces: D7725402S)			Immediately	$ 47.84
31	12646501		Rack, Ice		Appelez-nous	-
32	10972101		Spacer, Rack				$ 7.82
33	WP67006908		Screw (2)   (Replaces: 12991001)			Immediately	$ 8.78
34	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38
35	W10348259		Mount, Gear (left)   (Replaces: W10233898)				$ 89.87
35	W10348260		Mount, Gear (right)   (Replaces: W10233899)				$ 89.90
36	WPW10474715		Gear (long-right)   (Replaces: W10146446)			Immediately	$ 32.76
36	WPW10474716		Gear (short-left)   (Replaces: W10158749)			Immediately	$ 32.42
