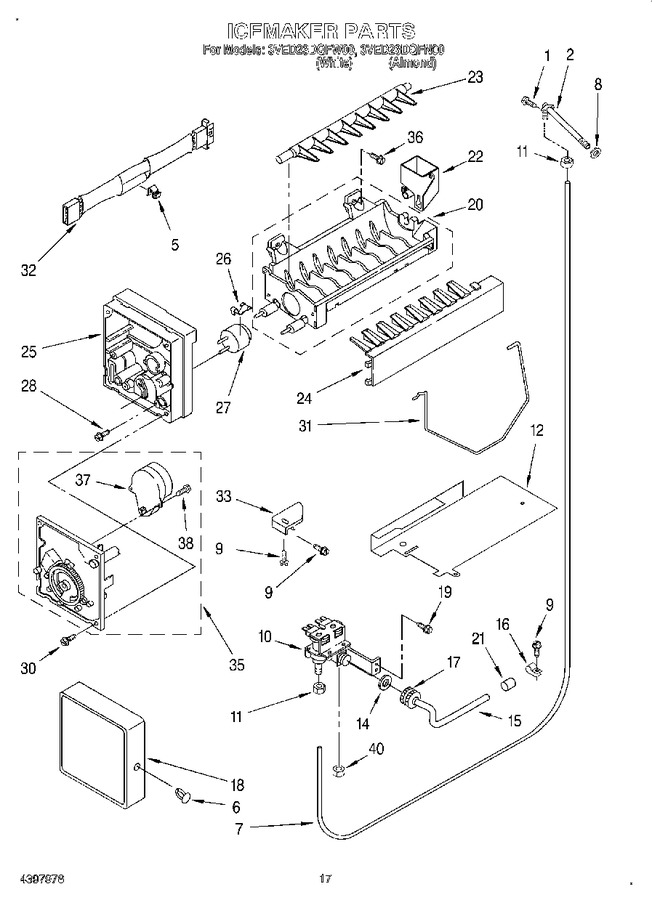

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
2	WP2196157		Fitting, Water Tube   (Replaces: 2196035)			Immediately	$ 12.59
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
6	489115		Clip				$ 5.51
7	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	WP489478		Screw   (Replaces: 489478)				$ 8.18
10	2175056		Valve, Solenoid		Appelez-nous	-
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
12	2256178		Heat Shield   (Replaces: 2182414)		Appelez-nous	-
14	628337		Washer		Appelez-nous	-
15	627861		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut		Appelez-nous	-
18	WPW10289690		Cover   (Replaces: 2174183)			Immediately	$ 8.82
19	628282		Screw		Appelez-nous	-
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.78
20	628282		Mold & Heater Assembly (also Order		Appelez-nous	-
21	WP2158826		Dampner   (Replaces: 836074)				$ 1.82
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 90.35
25	WP2195914		Support   (Replaces: 2195914)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.60
27	542369		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 114.64
28	8533917		Screw   (Replaces: 489322)				$ 14.04
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W11807379		Shut Off Arm   (Replaces: 2171593)			Immediately	$ 63.21
32	WP2187464		Harness, Wiring   (Replaces: 628281)				$ 130.80
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
35	628377		Module Assembly (includes Items 37 & 38)		Appelez-nous	-
36	WP488163		Screw   (Replaces: 488208)				$ 7.92
37	628303		Motor		Appelez-nous	-
38	489136		Screw				$ 10.80
40	1129179		Nut, Compression		Appelez-nous	-
