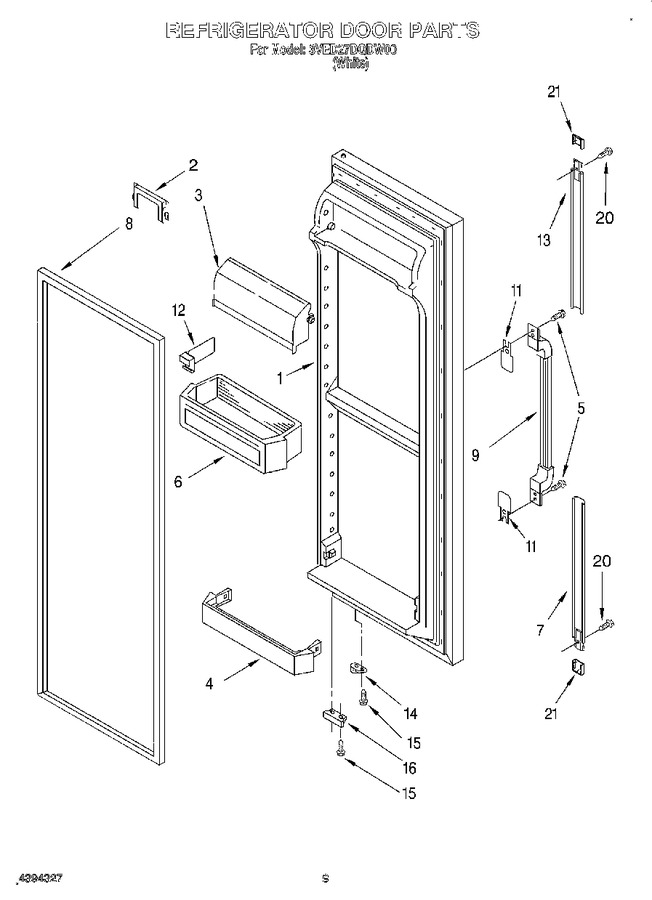

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2177319		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 78.61
5	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.95
7	2174282		Extension, Bottom		Appelez-nous	-
8	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
9	2189786		Handle, Center		Appelez-nous	-
11	2179399		Shim		Appelez-nous	-
12	2171284		Divider, Bin		Appelez-nous	-
13	2174279		Extension, Top		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2155332		Bracket, Door Stop		Appelez-nous	-
20	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
21	2174006		Cover, End Cap		Appelez-nous	-
