SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

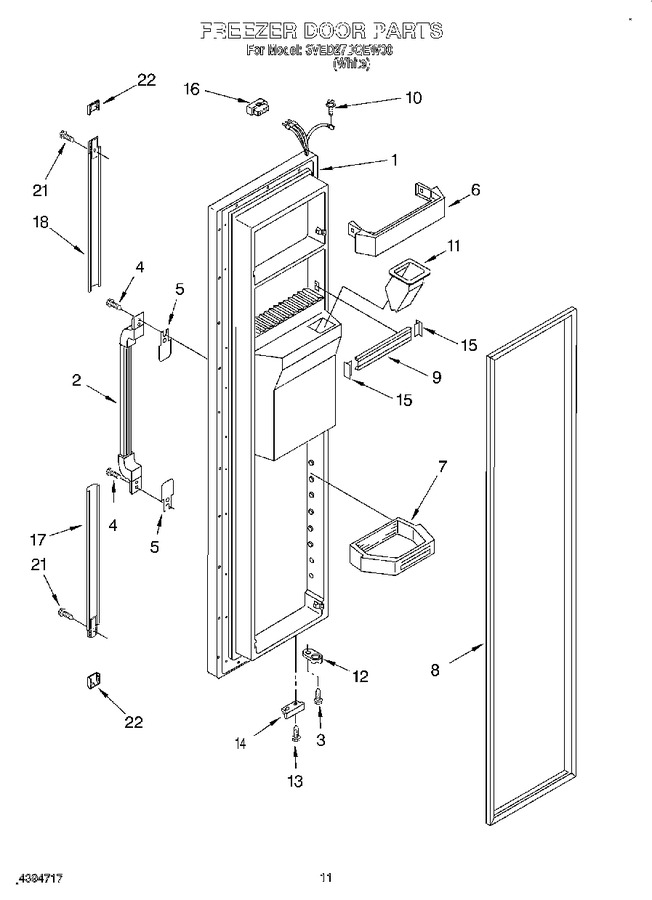

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197762W		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2194759W		Handle, Center		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	2179399		Shim, End Cap (2)		Appelez-nous	-
6	WP2171157		Trivet, Shelf (2)   (Replaces: 2171157)				$ 63.70
7	2179576		Shelf Bin (2)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service)				$ 325.70
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 24.27
10	WP488234		Screw   (Replaces: 489422)				$ 7.08
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
16	WP2154473		Connector   (Replaces: 2162412)				$ 24.83
17	2194766W		Extension, Bottom		Appelez-nous	-
18	2194765W		Extension, Top		Appelez-nous	-
21	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
22	2174006		Cover, End Cap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
