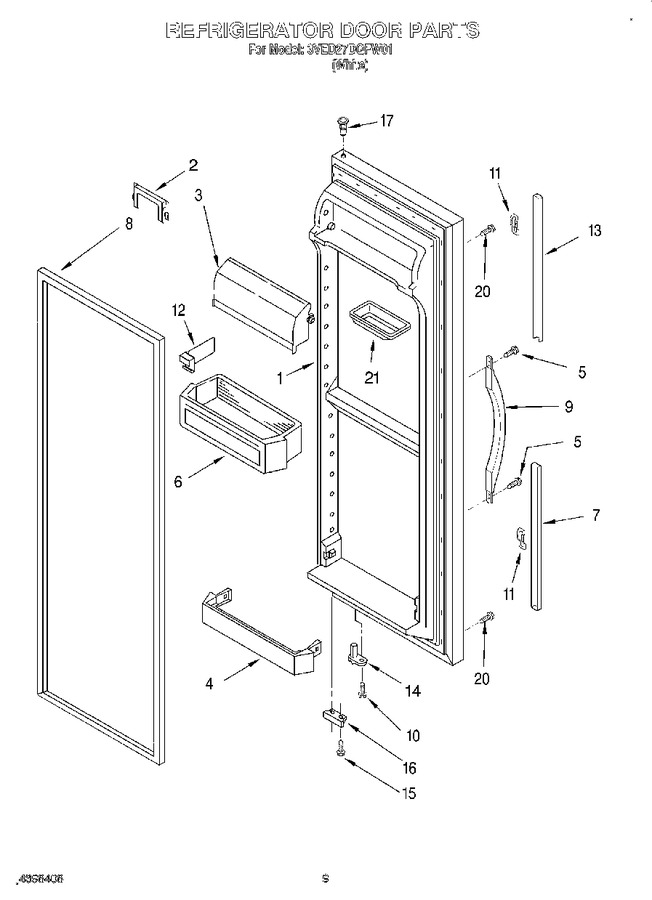

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194509W		Refrigerator Door (includes Item No.8)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 78.61
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.95
7	2194969W		Extension, Bottom				$ 5.51
8	2159075		Door, Gasket Magnetic (service)			Immediately	$ 333.00
9	2186649W		Handle, Center				$ 70.49
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
12	2195496		Divider, Bin		Appelez-nous	-
13	2194973W		Extension, Top (white)				$ 5.65
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2195950		Bracket, Door Stop				$ 5.84
17	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
21	2165792		Tray, Butter		Appelez-nous	-
