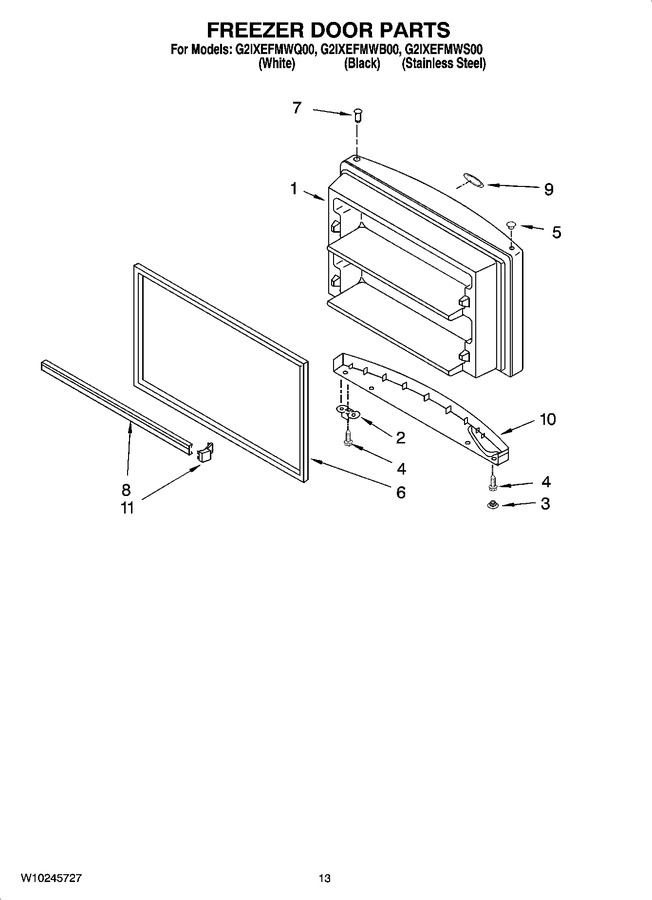

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2204856 | Freezer Door (includes Illus. 6 & 7) (black) |
|
- | |||||
| 1 | W10205108 | Freezer Door (includes Illus. 6 & 7) (stainless) |
|
- | |||||
| 1 | 2218508 | Freezer Door (includes Illus. 6 & 7) (stainless Vcm) |
|
- | |||||
| 1 | 2202520 | Freezer Door (includes Illus. 6 & 7) (white) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | 2204840 | Hole-plug Endcap (black) |
|
$ 33.23 | |||||
| 3 | 2204837 | Hole-plug Endcap (white) |
|
$ 27.77 | |||||
| 4 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP2212648 | Hole Plug, Hinge-sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 5 | WP2212651 | Hole Plug, Hinge-sleeve (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 6 | 2177310 | Door Gasket,magnetic (black) (Replaces: 2214969) |
|
$ 301.78 | |||||
| 6 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 7 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 8 | 2195947 | Trim, Door Shelf (2) |
|
$ 50.94 | |||||
| 9 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 10 | 2225094 | Endcap, Handle (white) |
|
- | |||||
| 10 | 2225108 | Endcap, Handle (black) |
|
$ 56.49 | |||||
| 11 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 |
