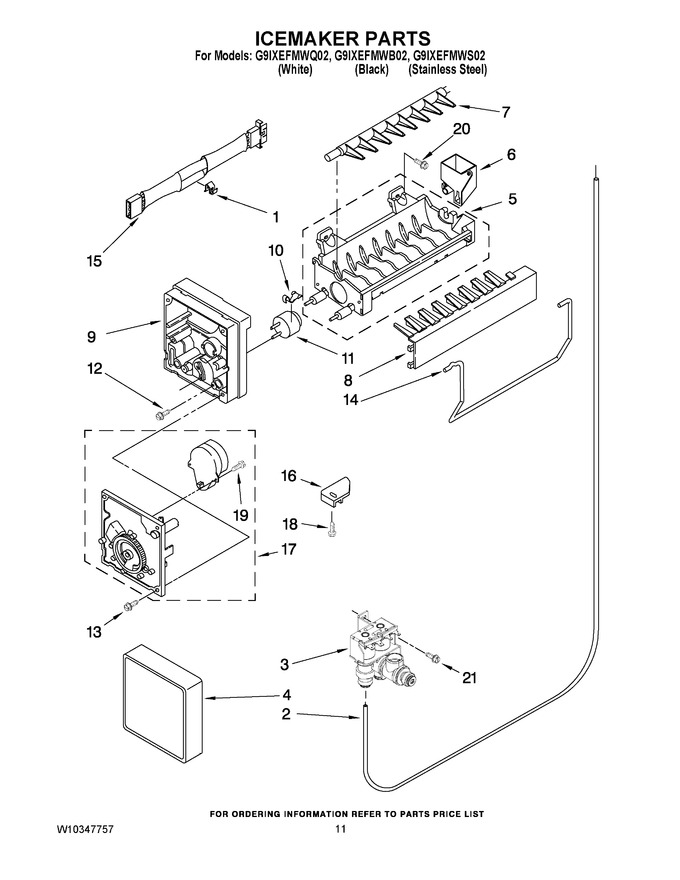

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 2 | W10823511 | Tube, Water (Replaces: 2210514) |
|
Immediately | $ 29.17 | ||||
| 3 | WP2188808 | Valve (double), Solenoid (Replaces: 2188808) |
|
Immediately | $ 153.89 | ||||
| 4 | WPW10289690 | Cover (Replaces: W10289690) |
|
$ 7.94 | |||||
| 5 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 210.17 | |||||
| 6 | W10122561 | Cup, Water Fill |
|
$ 26.24 | |||||
| 7 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 8 | WPW10122563 | Ice Striper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 9 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 10 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 11 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: W10290336) |
|
$ 103.18 | |||||
| 12 | 8533917 | Screw |
|
$ 12.64 | |||||
| 13 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 14 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 79.88 | |||||
| 15 | WP2187464 | Harness, Wiring (Replaces: 2187464) |
|
$ 117.72 | |||||
| 16 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 17 | 8201515 | Module Assembly (includes Item 19) (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 18 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 19 | 489136 | Screw, |
|
$ 9.72 | |||||
| 20 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 21 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 100 | 4317943 | Icemaker,complete Assembly (Replaces: W10190952) |
|
Immediately | $ 165.11 |
