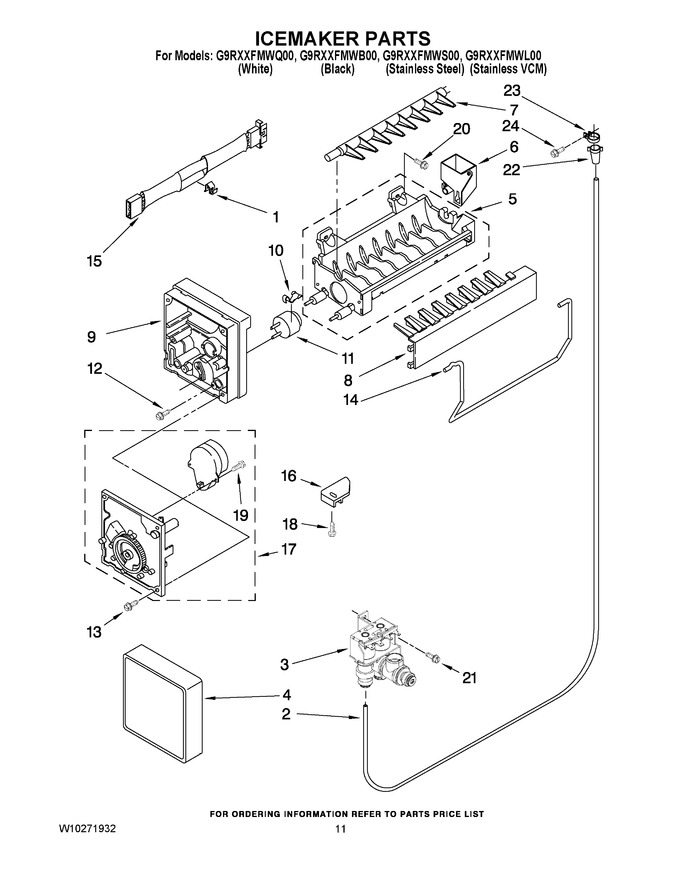

06 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205399 | Freezer Door (includes Illus. 6 & 7) (white) |
|
- | |||||
| 1 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 1 | 2218507 | Freezer Door (includes Illus. 6 & 7) (stainless Vcm) |
|
- | |||||
| 1 | W10141743 | Freezer Door (includes Illus. 6 & 7) (stainless) |
|
- | |||||
| 1 | 2205402 | Freezer Door (includes Illus. 6 & 7) (black) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 2 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 29.17 | ||||
| 3 | 2204837 | Hole-plug Endcap (white) |
|
$ 27.77 | |||||
| 3 | WP2315576 | Valve (double), Solenoid (Replaces: 2315576) |
|
Immediately | $ 88.31 | ||||
| 3 | 2204840 | Hole-plug Endcap (black) |
|
$ 33.23 | |||||
| 4 | WPW10289690 | Cover (Replaces: 2210484) |
|
$ 7.94 | |||||
| 4 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP2212648 | Hole Plug, Hinge-sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 5 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 210.17 | |||||
| 5 | WP2212651 | Hole Plug, Hinge-sleeve (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 6 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 292.22 | |||||
| 6 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 148.12 | ||||
| 6 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 26.24 | |||||
| 7 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 7 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 8 | WPW10122563 | Ice Striper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 8 | 2195946 | Trim, Door Shelf (2) |
|
$ 46.58 | |||||
| 9 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 9 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 10 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 10 | 2225090 | Endcap, Handle (white) |
|
- | |||||
| 10 | 2225158 | Endcap, Handle (black) |
|
$ 73.91 | |||||
| 11 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 11 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 103.18 | |||||
| 12 | 8533917 | Screw |
|
$ 12.64 | |||||
| 13 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 14 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 79.88 | |||||
| 15 | WP2187464 | Harness, Wiring (Replaces: 2187464) |
|
$ 117.72 | |||||
| 16 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 17 | 8201515 | Module Assembly (includes Item 19) (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 18 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 19 | 489136 | Screw |
|
$ 9.72 | |||||
| 20 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 21 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 22 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 23 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 10.96 | |||||
| 24 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.13 | |||||
| 100 | 4317943 | Ice Maker, Complete Assembly (Replaces: W10190952) |
|
Immediately | $ 165.11 | ||||
| NI | 833938 | Refinishing Material (kit, Terminal Connector) |
|
$ 7.62 | |||||
| NI | 72032 | Customer Touch-up Material (brush Touch-up Kit (black)) |
|
Immediately | $ 18.69 | ||||
| NI | 72017 | Customer Touch-up Material (brush Touch-up Kit (white)) |
|
Immediately | $ 11.07 | ||||
| NI | 4392901 | Customer Touch-up Material Enamel, Biscuit (12 Oz. Spray Can) |
|
- | |||||
| NI | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | |||||
| NI | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| NI | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | ||||
| NI | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| NI | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 218.83 | |||||
| NI | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | |||||
| NI | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | ||||
| NI | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| NI | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 218.83 | |||||
| NI | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| NI | 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 46.58 | |||||
| NI | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 74.13 | |||||
| NI | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| NI | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| NI | 350942 | Customer Touch-up Material Primer, White (12 Oz. Spray Can) |
|
$ 84.73 | |||||
| NI | 285006 | Customer Touch-up Material (enamel, Black) (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 53.90 | |||||
| NI | 350930 | Customer Touch-up Material Enamel, White (12 Oz. Spray Can) |
|
Immediately | $ 36.11 | ||||
| NI | 4392899 | Customer Touch-up Material Brush Touch-up Kit (biscuit) |
|
Immediately | $ 24.99 | ||||
| NI | 799344 | Refinishing Material (enamel, White (1 Qt. Uncut) ) |
|
$ 237.46 | |||||
| NI | 4392900 | Refinishing Material (enamel, Biscuit(1 Qt. Uncut)) |
|
- | |||||
| NI | 799340 | Refinishing Material (enamel, Black) (1 Qt. Uncut) |
|
- | |||||
| NI | 1117510 | Torx Key |
|
$ 5.84 |
