SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Bottom Door Parts


05 - Unit Parts


06 - Top Door Parts, Optional Parts

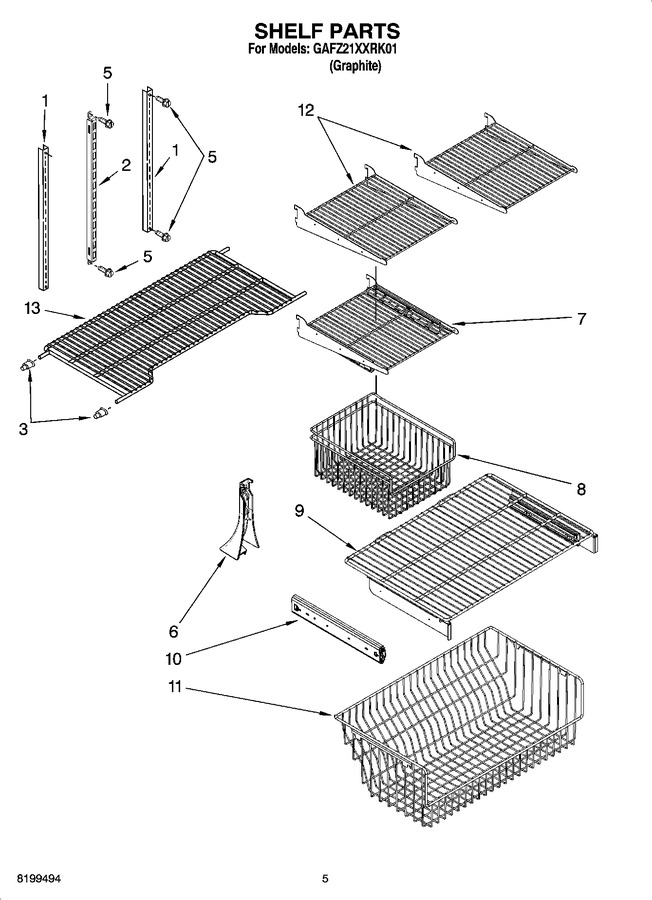

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
5	WP489478		Screw   (Replaces: 489478)				$ 7.36
6	2253149		Support, Shelf		Appelez-nous	-
7	2253287		Frame Assembly, Wire Shelf (1)		Appelez-nous	-
8	2253274		Basket, Wire (1)		Appelez-nous	-
9	2253254		Cover, Basket (includes Item 10)		Appelez-nous	-
10	2253259		Slide, Basket		Appelez-nous	-
11	2253260		Basket, Lower		Appelez-nous	-
12	2253275		Shelf Assembly		Appelez-nous	-
13	2253265		Shelf, Freezer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
