01 - Cabinet Parts

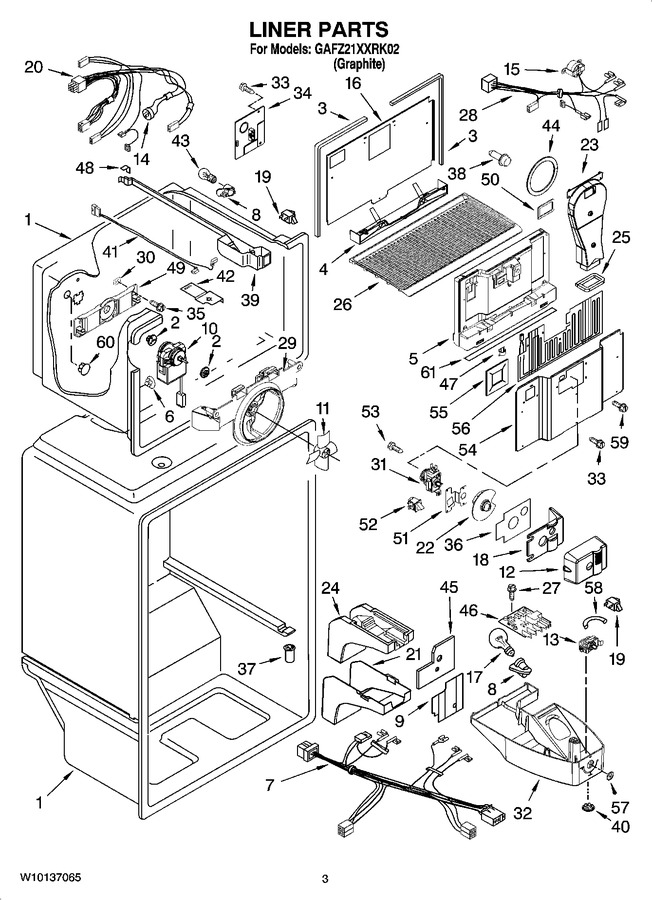

02 - Liner Parts
03 - Shelf Parts
04 - Bottom Door Parts
05 - Unit Parts
06 - Top Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | 2253133 | Gasket, Evaporator Cover (2) |
|
- | |||||
| 4 | 2253215 | Pan, Drain |
|
- | |||||
| 5 | 2253137 | Cover, Insulated Evaporator |
|
- | |||||
| 6 | WP941839 | Hole Plug (icemaker) (Replaces: 941839) |
|
$ 7.23 | |||||
| 7 | 2187549 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | 2253195 | Shield, Electrical |
|
- | |||||
| 10 | WP2320109 | Fan Motor (Replaces: 2225624) |
|
$ 203.73 | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | 2253096 | Control Box |
|
- | |||||
| 13 | WP2253122 | Thermostat Assembly (Replaces: 2253122) |
|
$ 217.48 | |||||
| 14 | WP4387503 | Defrost Bi-metal (Replaces: 2221677) |
|
Immediately | $ 43.10 | ||||
| 15 | 2253219 | Bimetal, Liner Heater |
|
- | |||||
| 16 | 2253099 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Light Bulb (Replaces: 2257556) |
|
Immediately | $ 17.31 | ||||
| 18 | 2253105 | Eps-control, Evap. |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | 2187989 | Wire Assembly, Freezer Compartment (includes Item 14) |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | 2253097 | Knob, Thermostat |
|
- | |||||
| 23 | 2253229 | Air Tower |
|
- | |||||
| 24 | 2225335 | Air Diffuser, Bottom |
|
- | |||||
| 25 | 2253052 | Gasket, Air Tower |
|
- | |||||
| 26 | 2253106 | Floor, Freezer |
|
- | |||||
| 27 | 8534009 | Screw |
|
- | |||||
| 28 | 2187804 | Harness, Wiring (upper Control) |
|
- | |||||
| 29 | 2254453 | Bracket Fan Motor |
|
$ 45.87 | |||||
| 30 | 2320183 | Retainer-screw |
|
- | |||||
| 31 | WP2253228 | Thermostat (Replaces: 2253228) |
|
$ 220.06 | |||||
| 32 | 2218382 | Box, Control |
|
- | |||||
| 33 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 34 | WP2217784 | Cover, Evaporator (Replaces: 2190688) |
|
$ 42.50 | |||||
| 35 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 36 | 2253191 | Gasket, Mylar |
|
- | |||||
| 37 | WP2210509 | Valve-tube, Body (Replaces: 2171931) |
|
$ 89.24 | |||||
| 38 | 2253143 | Fastener |
|
- | |||||
| 39 | 2300418 | Housing Base |
|
$ 44.10 | |||||
| 40 | 940014 | Hole Plug, Control Box |
|
$ 18.33 | |||||
| 41 | 2187601 | Wiring Harness, Freezer Light |
|
- | |||||
| 42 | 2193491 | Electrical Shield, Freezer Light |
|
$ 5.81 | |||||
| 43 | 4396822 | Light Bulb (Replaces: 2260802) |
|
Immediately | $ 12.22 | ||||
| 44 | 2253053 | Gasket, Air Tower Inlet |
|
- | |||||
| 45 | 2204639 | Shield, Heat |
|
- | |||||
| 46 | 2303821 | Board, Control |
|
$ 240.50 | |||||
| 47 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.33 | |||||
| 48 | 2166284 | Gasket, Rear |
|
$ 6.06 | |||||
| 49 | 2254454 | Bracket, Evap. Fan, Rear |
|
Immediately | $ 67.90 | ||||
| 50 | 2253054 | Gasket, Air Tower |
|
- | |||||
| 51 | 2253217 | Bracket, Control |
|
- | |||||
| 52 | 2225399 | Switch, Rocker |
|
- | |||||
| 53 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 54 | 2253100 | Cover, Evaporator |
|
- | |||||
| 55 | 2253085 | Gasket |
|
- | |||||
| 56 | 2253123 | Heater, Auxilary |
|
- | |||||
| 57 | WP2202885 | Knob, Control (Replaces: 2202885) |
|
$ 24.93 | |||||
| 58 | WP2196003 | Tube-barrier, Thermostat (Replaces: 2204640) |
|
$ 7.52 | |||||
| 59 | 8533886 | Screw |
|
- | |||||
| 60 | WP487996 | Cap, Tube (Replaces: 487996) |
|
$ 7.80 | |||||
| 61 | WP2253055 | Gasket, Insulated Evaporator Cover (Replaces: 2253055) |
|
$ 25.94 |
