SELECT A DIAGRAM

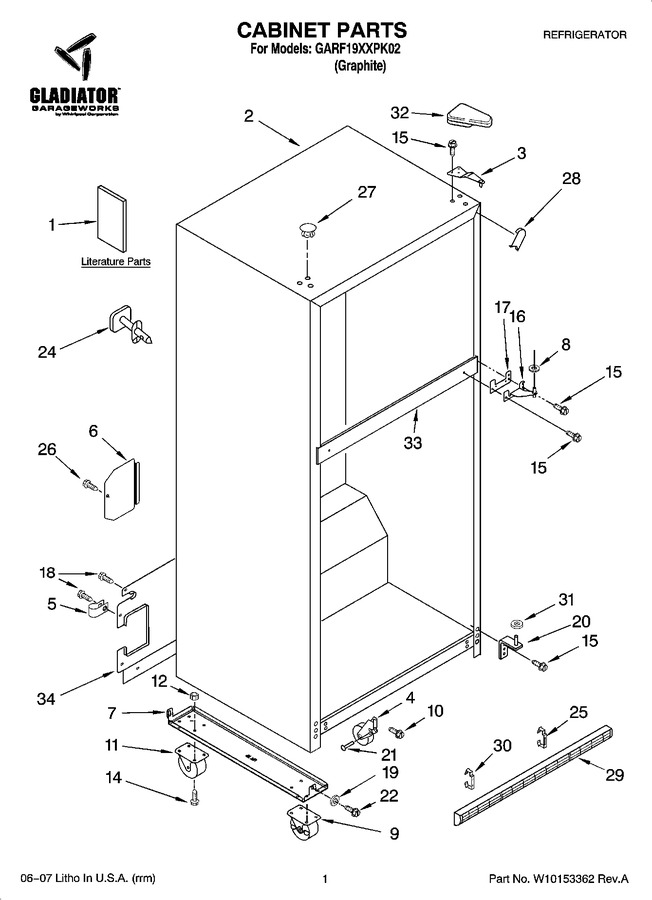

01 - Cabinet Parts
02 - Liner Parts
03 - Bottom Door Parts
04 - Unit Parts
05 - Top Door Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2319964 | Energy Label (spanish) |
|
- | |||||
| 1 | 2314278 | Service & Wiring Sheet (english) |
|
- | |||||
| 1 | 2319938 | Energy Label (english) |
|
- | |||||
| 1 | 2314467 | Use & Care Guide |
|
- | |||||
| 1 | 2254107 | Customer Quick Tips |
|
- | |||||
| 3 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 107.48 | ||||
| 4 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 5 | 489348 | Clamp, Tube (water Supply Line) |
|
- | |||||
| 6 | 2166251 | Cover, Water Valve |
|
$ 6.43 | |||||
| 7 | 2253155 | Bracket, Caster (left) |
|
- | |||||
| 7 | 2253156 | Bracket, Caster (right) |
|
- | |||||
| 8 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 9 | WP2253168 | Caster, Fixed (with Brake) (Replaces: 2253168) |
|
$ 121.41 | |||||
| 10 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.80 | |||||
| 11 | 2253169 | Caster, Swivel |
|
- | |||||
| 12 | WP8533952 | Nut (Replaces: 8533952) |
|
$ 78.30 | |||||
| 14 | WP3400527 | Screw (Replaces: 3400527) |
|
$ 7.26 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 17 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 10.29 | |||||
| 18 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 19 | 8533956 | Lock Washer |
|
- | |||||
| 20 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 21 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 22 | 3400241 | Screw |
|
- | |||||
| 25 | 2254385 | Clip-grille |
|
$ 79.98 | |||||
| 26 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 27 | 2204835 | Hole Plug (6) |
|
- | |||||
| 28 | 2204843 | Corner Filler (2) |
|
- | |||||
| 29 | 2254390 | Grille (includes Illus. 25 & 30) |
|
- | |||||
| 30 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 31 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 32 | 2213388 | Cover, Hinge |
|
- | |||||
| 34 | 2254582 | Cover, Unit (Replaces: 2302357) |
|
$ 121.26 |
