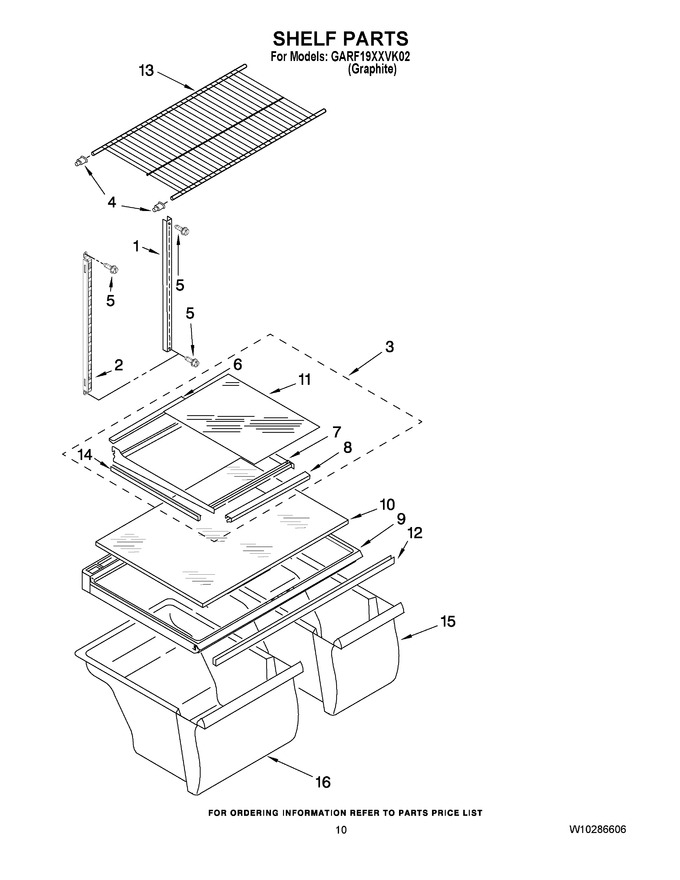

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | W10282503 | Shelf, Cantilever (complete) |
|
- | |||||
| 4 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | WP2188689 | Trim, Shelf (rear) (Replaces: 2188686) |
|
$ 109.40 | |||||
| 7 | 2201101E | Shelf, Cantilever |
|
- | |||||
| 8 | 2188684 | Trim, Shelf Front |
|
$ 11.33 | |||||
| 9 | WP2314548 | Crisper Cover (Replaces: 2314497) |
|
$ 233.85 | |||||
| 10 | WP2169921 | Insert, Crisper Cover (Replaces: 2221693) |
|
$ 233.04 | |||||
| 11 | 2200985 | Glass Shelf |
|
- | |||||
| 12 | WP2172748 | Crisper, Support (Replaces: 2314477) |
|
$ 91.87 | |||||
| 13 | 2189453 | Shelf, Freezer |
|
- | |||||
| 14 | 2188711 | Trim, Shelf Side |
|
- | |||||
| 15 | W10856580 | Pan, Crisper (10 Inch) (Replaces: 2218123) |
|
Immediately | $ 159.33 | ||||
| 16 | W10854037 | Crisper Pan (13-inch) (Replaces: 2218124) |
|
Immediately | $ 161.27 |
