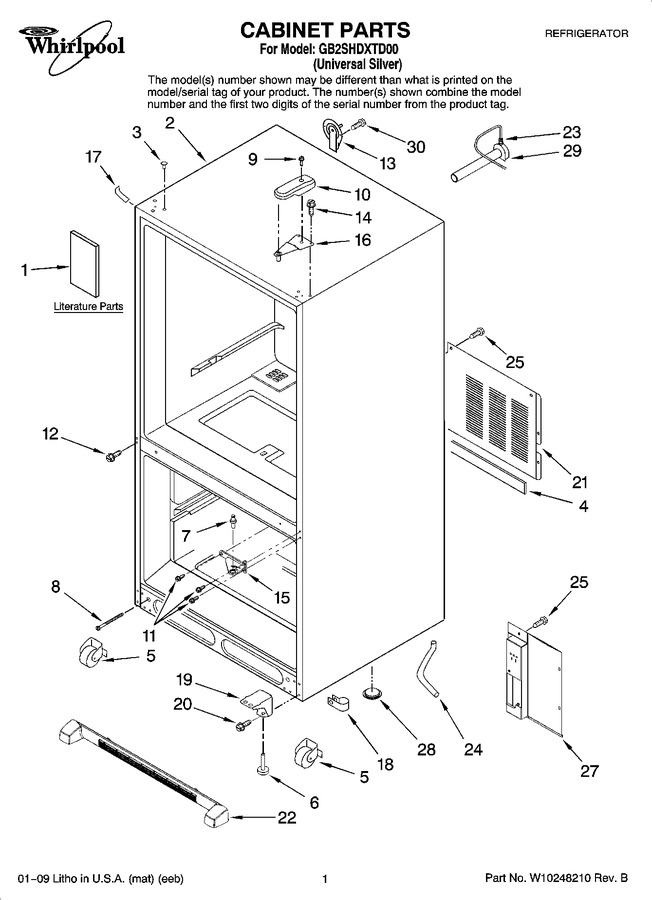

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10200283		Use & Care Guide		Appelez-nous	-
1	W10183275		Energy Guide		Appelez-nous	-
1	W10165418		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: 67001131)			Immediately	$ 8.15
4	B5759649		Gasket		Appelez-nous	-
5	12580304		Roller Assembly				$ 5.84
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 8.78
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 7.08
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	67001012		Cover, Hinge (black)				$ 49.71
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 8.43
12	W11573362		Screw   (Replaces: 67006380)				$ 14.72
13	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 167.35
16	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
18	W10157973		Clip, Drain				$ 7.80
19	W10208641		Foot, Cabinet		Appelez-nous	-
20	67006564		Screw			Immediately	$ 8.15
21	67006102		Cover, Unit		Appelez-nous	-
22	WPW10534162		Grille Assembly (includes Clips) (black)   (Replaces: 67006954)				$ 148.16
23	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
24	W10164397		Tube, Drain				$ 15.53
25	67006425		Screw (9)			Immediately	$ 7.30
27	67001097		Cover, Water Valve		Appelez-nous	-
28	A3076901		Plug, Button				$ 5.70
29	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
30	WP98165		Screw   (Replaces: 67006287)				$ 8.57
