SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

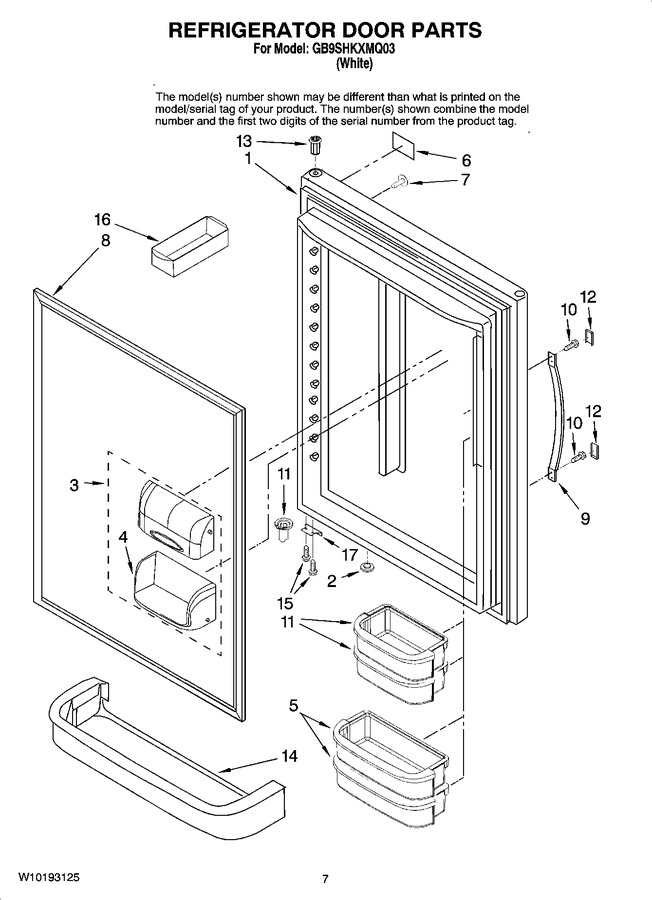

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001138		Refrigerator Door (w/ Insulation) (white)				$ 514.71
2	10712401		Plug, Vent (white)				$ 7.79
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	WPW10371194		Bucket (2) (medium)   (Replaces: 67003777)			Immediately	$ 77.23
6	67002684		Nameplate		Appelez-nous	-
7	WP67001130		Plug, Button (2) (white)   (Replaces: 67001130)			Immediately	$ 8.21
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10130148)			Immediately	$ 365.24
9	67002677		Handle, Door (white)		Appelez-nous	-
10	67006682		Screw		Appelez-nous	-
11	WPW10351081		Bucket (2) (small)   (Replaces: 67003778)			Immediately	$ 82.77
12	67002682		Trim, Handle				$ 12.84
13	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 8.20
14	67002505		Retainer, Door		Appelez-nous	-
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
16	W10136387A		Bin, Egg   (Replaces: 12574902)				$ 19.54
17	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 69.29

    View Diagram in Separate Window       Print Part List
