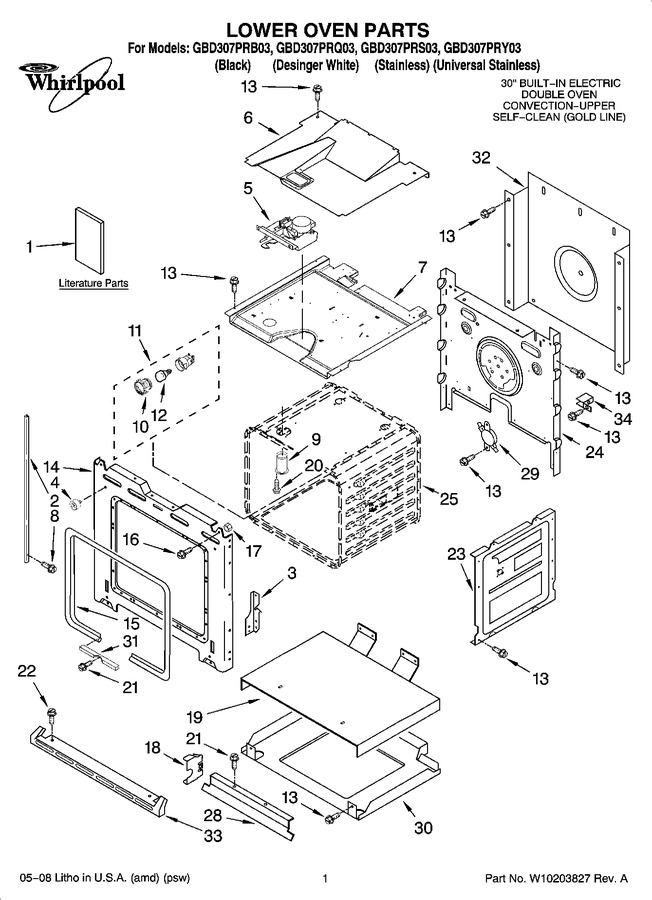

01 - Lower Oven Parts
02 - Upper Oven Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 8303647 | Installation Instructions |
|
- | |||||
| 1 | W10162171 | Use & Care Guide (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10162172 | Use & Care Guide (french) |
|
- | |||||
| 1 | 8302068 | Tech Sheet |
|
- | |||||
| 2 | WP8281236 | Trim, Side Left (screw) (Replaces: 8281236) |
|
$ 7.34 | |||||
| 2 | W10136098 | Trim, Side Right (black) |
|
- | |||||
| 2 | W10136100 | Trim, Side Right (white) |
|
- | |||||
| 2 | W10166949 | Trim, Side Right (stainless) |
|
- | |||||
| 2 | WPW10339500 | Trim, Side Left (black) (Replaces: W10136099) |
|
$ 184.32 | |||||
| 2 | WPW10339502 | Trim, Side Left (white) (Replaces: W10136101) |
|
$ 115.88 | |||||
| 2 | W10166948 | Trim, Side Left (stainless) |
|
- | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 114.93 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 118.57 | ||||
| 4 | W10105790 | Bumper, Door |
|
$ 6.67 | |||||
| 5 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 310.57 | ||||
| 6 | 8302349 | Divider, Vent |
|
$ 142.26 | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | WP3400805 | Screw (silver) (Replaces: 3400805) |
|
$ 6.80 | |||||
| 8 | WP8281236 | Screw (black) (Replaces: 8281236) |
|
$ 7.34 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 110.21 | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Assembly, Oven Light (Replaces: W10009930) |
|
$ 91.31 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 49.04 | ||||
| 13 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 14 | WPW10115831 | Frame, Front (Replaces: W10130368) |
|
$ 316.70 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 67.10 | ||||
| 16 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 17 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.90 | |||||
| 18 | 4452152 | Bracket, Mounting |
|
$ 31.66 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 20 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| 21 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 22 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 23 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 135.62 | |||||
| 24 | W10161110 | Back, Chassis |
|
- | |||||
| 28 | 9760677 | Deflector, Bottom |
|
$ 155.46 | |||||
| 29 | WP9759242 | Thermostat (tod) (Replaces: 9759242) |
|
Immediately | $ 77.01 | ||||
| 30 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 31 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 8.37 | |||||
| 32 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 135.06 | |||||
| 33 | WPW10207689 | Vent, Bottom Trim (black) (Replaces: 8303583) |
|
$ 185.26 | |||||
| 33 | 8303582 | Vent, Bottom Trim (stainless) |
|
- | |||||
| 33 | WPW10207689 | Vent, Bottom Trim (white) (Replaces: 8303584) |
|
$ 185.26 | |||||
| 34 | 4449845 | Support, Bracket |
|
- | |||||
| W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 112.37 | ||||||
| 4450365 | Insulation, Back |
|
$ 70.95 |
