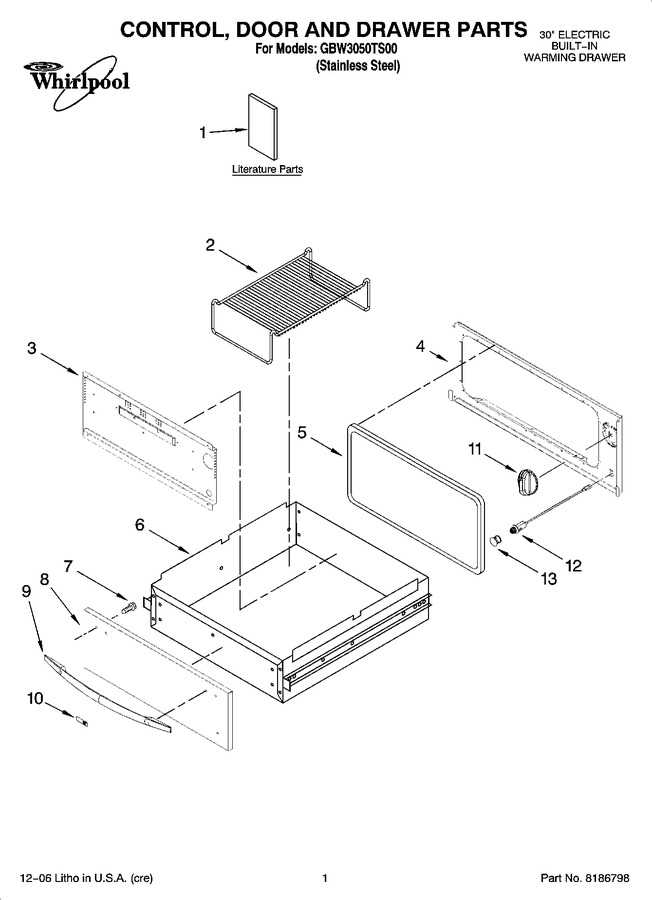

01 - Control, Door And Drawer Parts
02 - Internal Warming Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10112406 | Use & Care Guide |
|
- | |||||
| 1 | W10114099 | Installation Instructions |
|
- | |||||
| 1 | W10064720 | Tech Sheet |
|
- | |||||
| 2 | 8273277 | Rack, Warming |
|
$ 99.80 | |||||
| 3 | 9762335 | Liner, Drawer |
|
- | |||||
| 4 | W10112662 | Panel, Control |
|
- | |||||
| 5 | 9762315 | Gasket, Drawer |
|
- | |||||
| 6 | WP9763646 | Drawer Assembly (Replaces: 9763646) |
|
Immediately | $ 462.79 | ||||
| 7 | 3179776 | Screw |
|
- | |||||
| 8 | W10084750 | Door, Front Assy |
|
- | |||||
| 9 | 8303164 | Handle, Drawer |
|
- | |||||
| 10 | 8303810 | Name Plate |
|
- | |||||
| 11 | W10854530 | Knob, Thermostat (Replaces: 4455984) |
|
$ 15.71 | |||||
| 12 | W10112423 | Light, Indicator |
|
- | |||||
| 13 | 4456314 | Lens, Light |
|
$ 91.89 |
