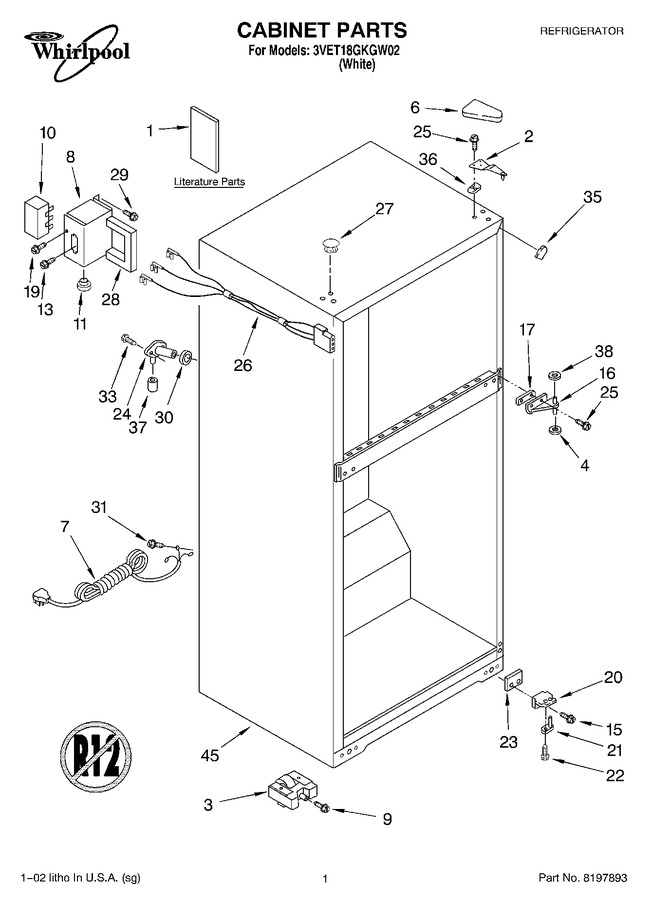

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2207890 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT2222092 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 107.48 | ||||
| 3 | 2217757 | Roller-front |
|
- | |||||
| 4 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 6 | WP2213360 | Cover Hinge (Replaces: 2213360) |
|
$ 18.17 | |||||
| 7 | 1129332 | Cord-service |
|
- | |||||
| 8 | 2188194 | Enclosure, Term. |
|
- | |||||
| 9 | W11594405 | Screw (Replaces: 981126) |
|
Immediately | $ 17.21 | ||||
| 10 | 1129346 | Terminal Block |
|
- | |||||
| 11 | 1129449 | Bushing |
|
- | |||||
| 13 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 10.22 | ||||
| 15 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 10.38 | |||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 76.57 | |||||
| 17 | 2166043 | Shim, Hinge Center |
|
$ 62.78 | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.57 | |||||
| 20 | WP2325482 | Hinge Butt (Replaces: 2221926) |
|
Immediately | $ 72.00 | ||||
| 21 | 9791682 | Hinge-pin Bott. |
|
$ 26.60 | |||||
| 22 | 489498 | Screw |
|
- | |||||
| 23 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.34 | ||||
| 24 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 11.33 | ||||
| 25 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 26 | 2209657 | Wire Assembly (Replaces: 2174913) |
|
- | |||||
| 27 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 28 | 2167227 | Gasket |
|
- | |||||
| 29 | WP250830 | Screw (Replaces: 489048) |
|
$ 7.90 | |||||
| 30 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 31 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 33 | WPW10141645 | Screw, 8 X 1/2 A (Replaces: 489084) |
|
$ 7.25 | |||||
| 35 | W10859322 | Corner Filler (Replaces: 2166003) |
|
$ 7.28 | |||||
| 36 | 1123517 | Shim |
|
- | |||||
| 37 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 7.80 | |||||
| 38 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 45 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| LIT677969 | Do-it-yourself Manual Ref./fzr. |
|
- |
