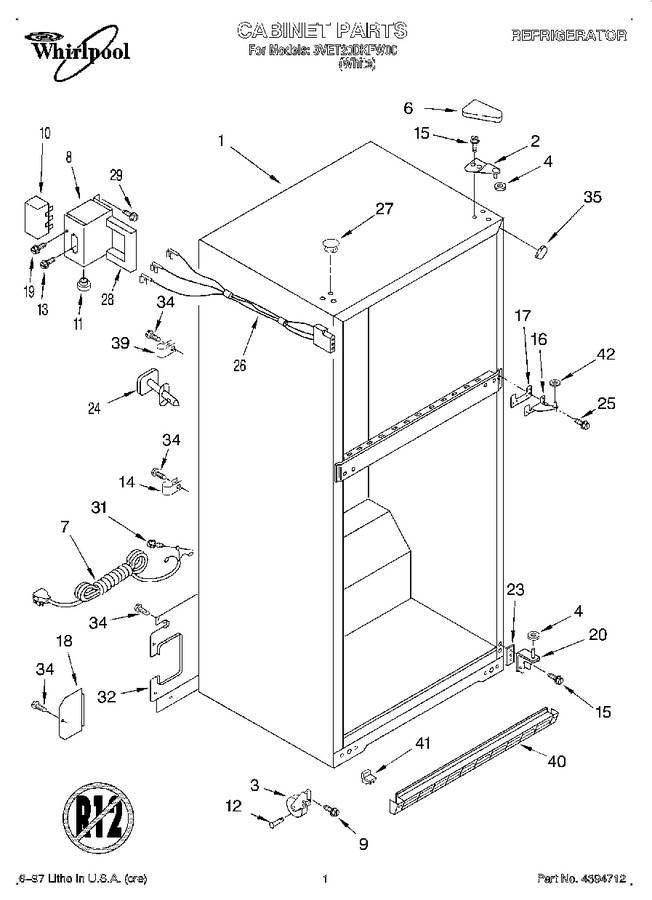

01 - Cabinet
02 - Liner
03 - Shelf
04 - Refrigerator Door
05 - Unit
06 - Freezer Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | WP2189412 | Hinge, Top (Replaces: 2157591) |
|
$ 120.23 | |||||
| 3 | WP2166108 | Roller-front (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | WP487576 | Washer-nylon (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 6 | WP2213360 | Cover-hinge (Replaces: 2160403) |
|
$ 20.19 | |||||
| 7 | 1129332 | Service Cord |
|
- | |||||
| 8 | 2158579 | Enclosure, Term. |
|
- | |||||
| 9 | 2174650 | Screw |
|
- | |||||
| 10 | 1129346 | Terminal Block |
|
- | |||||
| 11 | 1129449 | Bushing |
|
- | |||||
| 12 | W11594405 | Rivet (Replaces: 981126) |
|
Immediately | $ 19.12 | ||||
| 13 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 14 | 489348 | Clamp, Tube |
|
- | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 92.02 | ||||
| 17 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 11.43 | |||||
| 18 | 2166251 | Cover, Water Valve |
|
$ 6.43 | |||||
| 19 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 20 | WP2254473 | Hinge Butt (Replaces: 2189194) |
|
$ 9.28 | |||||
| 23 | 2172743 | Shim, Bottom Hinge |
|
$ 33.55 | |||||
| 24 | N/A | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 25 | WP999367 | Screw (Replaces: 489423) |
|
$ 8.56 | |||||
| 26 | 2166651 | Wire Assembly |
|
- | |||||
| 27 | WP2151652 | Hole Plug (6) (Replaces: 2151652) |
|
$ 22.87 | |||||
| 28 | 2167227 | Gasket |
|
- | |||||
| 29 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 31 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 32 | 2254582 | Cover, Unit (Replaces: 2189059) |
|
$ 134.73 | |||||
| 34 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 35 | WPW10283959 | Corner Filler (Replaces: 2183978) |
|
$ 8.21 | |||||
| 39 | WP488366 | Clamp (Replaces: 489385) |
|
$ 11.92 | |||||
| 40 | 2189157 | Grille |
|
- | |||||
| 41 | 2166156 | Corner Filler, Grille |
|
- | |||||
| 42 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 |
