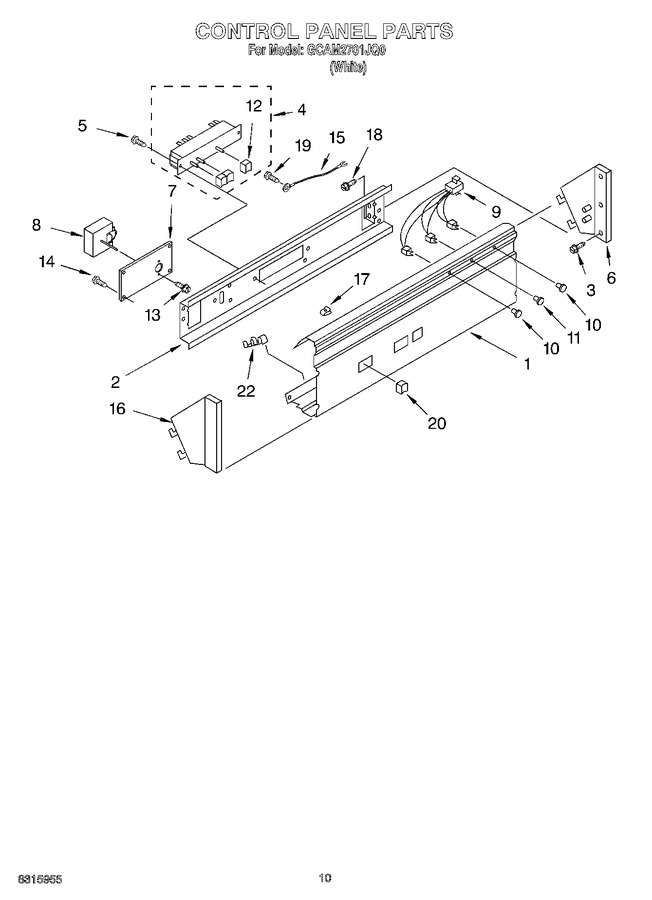

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8316233		Panel, Console		Appelez-nous	-
2	3348576		Bracket, Control		Appelez-nous	-
3	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
4	W10330142		Switch, Cycle Selector (includes Illus. No. 12)   (Replaces: 8316440)				$ 269.90
5	WPW10139210		Screw   (Replaces: 3390646)				$ 8.03
6	3949737		End Cap (r.h.)				$ 49.53
7	3348573		Bracket, Timer		Appelez-nous	-
8	3946928		Timer		Appelez-nous	-
9	W10858647		Lights, Indicator   (Replaces: 3352457)				$ 41.04
10	WP3348109		Lens, Amber (2)   (Replaces: 3348109)			Immediately	$ 13.14
11	WP3348110		Lens, Yellow (1)   (Replaces: 3348110)				$ 8.12
12	WPW10330137		Pushbutton (3)   (Replaces: 8316433)			Immediately	$ 340.60
13	WP3400064		Screw (2)   (Replaces: 3400064)				$ 7.30
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
15	3398893		Wire, Ground		Appelez-nous	-
16	3949734		End Cap (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	WP388326		Screw, End Cap To Bracket (4)   (Replaces: 388326)				$ 9.29
19	3400073		Screw, Ground		Appelez-nous	-
20	8316442		Pushbutton, Timer		Appelez-nous	-
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
