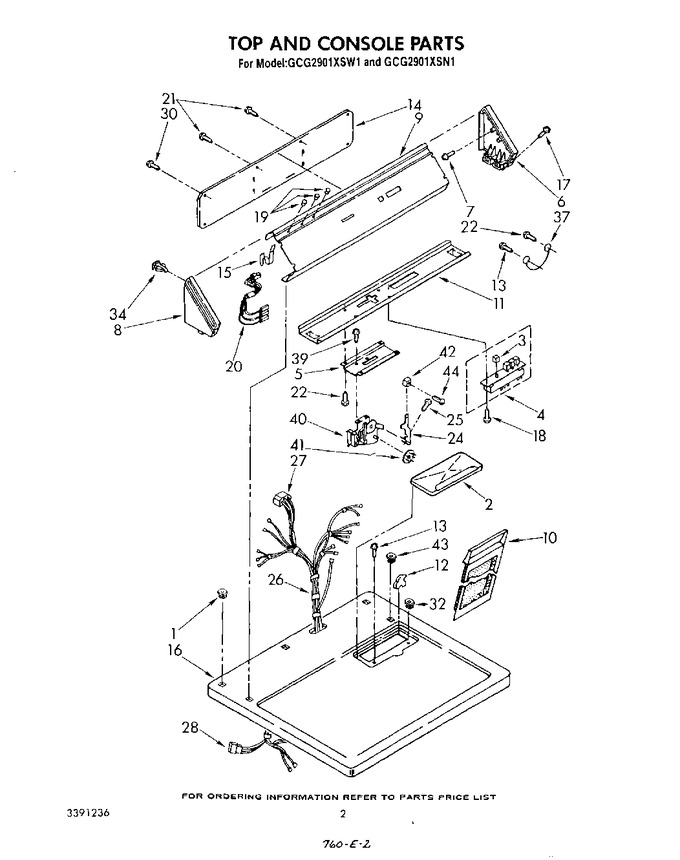

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 358472 | Nut, Push-in (4) |
|
- | |||||
| 2 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 2 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 3 | 3348587 | Button (4) |
|
$ 12.40 | |||||
| 4 | WPW10330137 | Switch, Pushbutton (Replaces: 697558) |
|
Immediately | $ 340.60 | ||||
| 5 | 3388374 | Control, Bracket |
|
- | |||||
| 6 | 63795 | Cap, End. (r.h.) |
|
$ 14.10 | |||||
| 7 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 8 | 63789 | Cap, End (l.h.) |
|
- | |||||
| 9 | 3389679 | Panel, Control |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 690634) |
|
Immediately | $ 41.91 | ||||
| 11 | 3388375 | Bracket, Control |
|
- | |||||
| 12 | WPW10044480 | Hinge, Lint Lid (l.h.) (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, Lint Lid (r.h.) (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 8.47 | ||||
| 14 | 386367 | Panel, Rear |
|
- | |||||
| 15 | 693141 | Clip, Harness |
|
- | |||||
| 16 | 695507 | Top (white) |
|
- | |||||
| 16 | 695508 | Top (almond) |
|
- | |||||
| 17 | WP388326 | Screw, 8a X 3/8 (Replaces: 64211) |
|
$ 9.29 | |||||
| 18 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 9424101) |
|
Immediately | $ 11.87 | ||||
| 19 | WP3348109 | Lens, Amber (3) (Replaces: 3348109) |
|
Immediately | $ 13.14 | ||||
| 20 | 3388650 | Lights, Indicator |
|
- | |||||
| 21 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 22 | WP90767 | Screw, 8-18 X 1/2 (Replaces: 697774) |
|
Immediately | $ 8.25 | ||||
| 24 | 694583 | Lever, Timer |
|
- | |||||
| 25 | 98831 | Screw |
|
- | |||||
| 26 | 3391227 | Harness, Wiring (complete) |
|
- | |||||
| 27 | 352457 | Plug, Terminal (6 Way) Uses Terminal 94614) |
|
- | |||||
| 28 | 691707 | Plug, Terminal (uses Terminal 94614) |
|
- | |||||
| 30 | WP489069 | Screw (4) (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 32 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 34 | 689559 | Nut, Push-in |
|
- | |||||
| 37 | 690853 | Wire, Ground |
|
- | |||||
| 39 | W11808444 | Screw, 8-32 X 5/16 (Replaces: 98139) |
|
- | |||||
| 40 | 279737 | Timer, 60 Hz. (incl. 4 Pin Cam) (Replaces: 3389668) |
|
Immediately | $ 382.97 | ||||
| 41 | WP339855 | Cam (4 Pin (45 Min.)) (Replaces: 339855) |
|
$ 8.79 | |||||
| 41 | 51-161-6 | Cam (6 Pin (30 Min.)) (Replaces: 343777) |
|
$ 34.52 | |||||
| 41 | WP3387974 | Cam (3 Pin (60 Min.)) (Replaces: 3387974) |
|
$ 8.74 | |||||
| 42 | 3348574 | Pushbutton |
|
- | |||||
| 43 | 358473 | Nut, Push-in |
|
$ 5.84 | |||||
| 44 | 310410 | Screw |
|
- |
