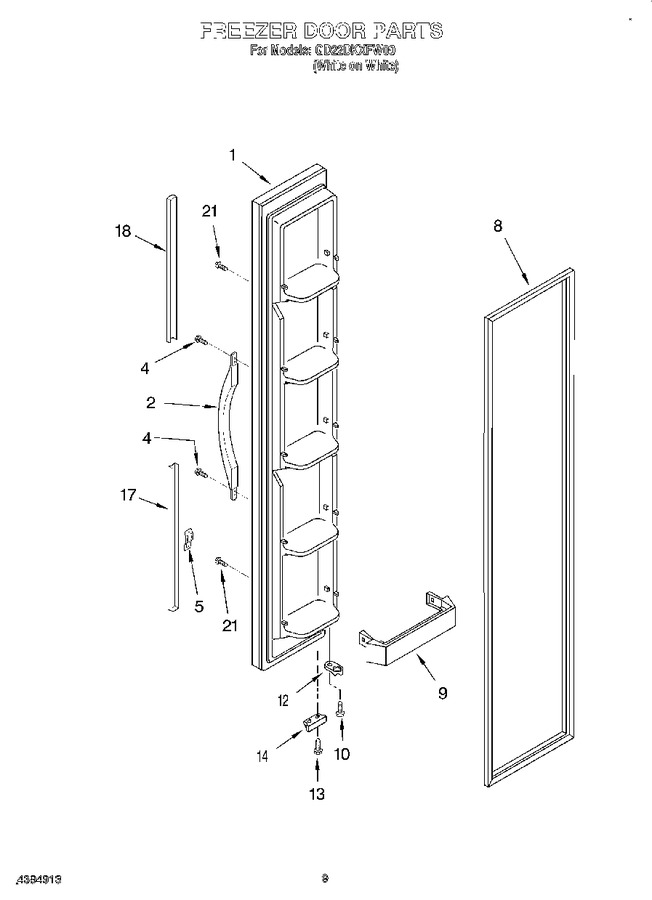

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194198W		Freezer Door (includes Item No.8)		Appelez-nous	-
2	2193345W		Handle, Center		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 6.57
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 6.99
8	2159072		Door Gasket, Magnetic (service) (mist Beige)				$ 291.24
9	WP2156021		Trivet, Shelf (5)   (Replaces: 2156021)				$ 59.79
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 26.77
13	WP999367		Screw   (Replaces: 489367)				$ 7.70
14	2195950		Bracket, Door Stop				$ 5.84
17	2194970W		Extension, Bottom		Appelez-nous	-
18	2194972W		Extension, Top		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
