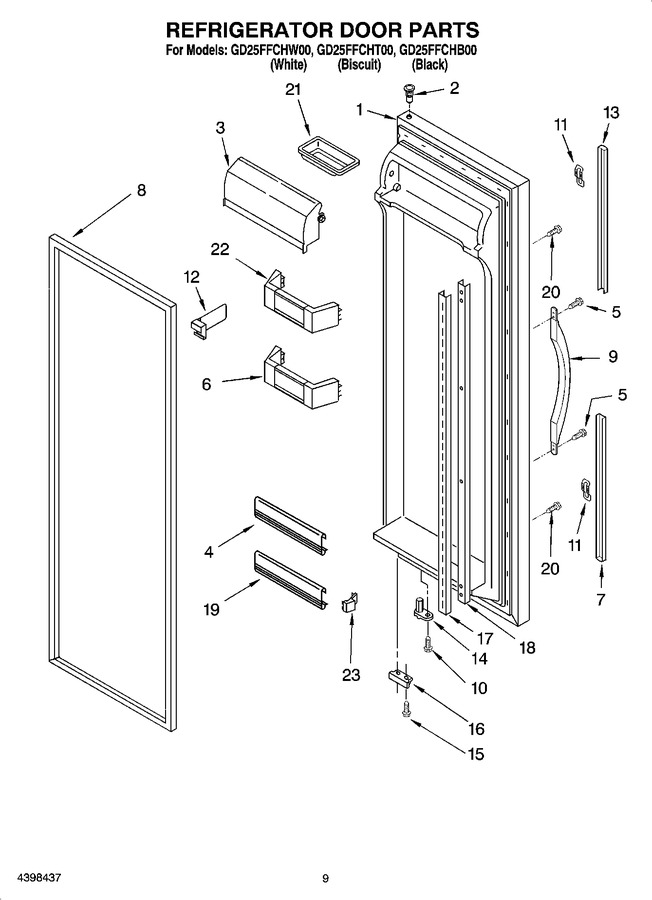

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2199766W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
1	2199766T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2199766B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	2182190		Trim, Door Shelf		Appelez-nous	-
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	2199986		Bin, Door		Appelez-nous	-
7	2203047T		Extension, Bottom (biscuit)		Appelez-nous	-
7	2203047B		Extension, Bottom (black)		Appelez-nous	-
7	2203047W		Extension, Bottom (white)		Appelez-nous	-
8	2209513		Door Gasket, Magnetic (service) (mist Beige)		Appelez-nous	-
8	2209515		Door Gasket, Magnetic (service) (black)				$ 226.26
9	2186649T		Handle, Center (biscuit)		Appelez-nous	-
9	2186649W		Handle, Center (white)				$ 70.49
9	2186649B		Handle, Center (black)				$ 72.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
12	2195497		Divider, Bin		Appelez-nous	-
13	2203046T		Extension, Top (biscuit)		Appelez-nous	-
13	2203046B		Extension, Top (black)		Appelez-nous	-
13	2203046W		Extension, Top (white)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2195952		Bracket, Door Stop (black)		Appelez-nous	-
16	2195950		Bracket, Door Stop (chrome)				$ 5.84
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
21	2165792		Butter, Dish		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 13.18
