SELECT A DIAGRAM

01 - Unit, Literature


02 - Cabinet

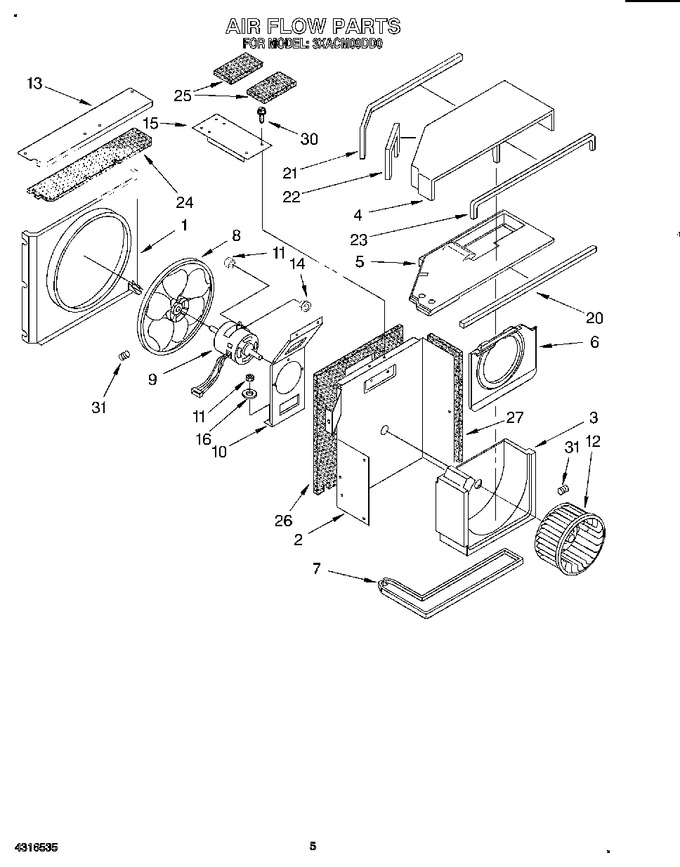

03 - Air Flow


04 - Control Module


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180015		Shroud, Condenser		Appelez-nous	-
2	1180007		Wall, Dividing		Appelez-nous	-
3	1180334		Scroll, Air Housing		Appelez-nous	-
4	1180336		Hood, Air Housing		Appelez-nous	-
5	1180487		Cover, Evaporator Top		Appelez-nous	-
6	1180335		Orifice, Air Housing		Appelez-nous	-
7	1180333		Pan, Drain		Appelez-nous	-
8	1180017		Blade, Fan		Appelez-nous	-
9	1180834		Motor, Fan		Appelez-nous	-
10	1180011		Bracket, Motor Mount		Appelez-nous	-
11	1180008		Nut, Hex 5mm		Appelez-nous	-
12	1180014		Wheel, Blower		Appelez-nous	-
13	1180134		Cover, Condenser Top		Appelez-nous	-
14	1180535		Grommet, Fan Motor		Appelez-nous	-
15	1180043		Support, Unit		Appelez-nous	-
16	1180415		Washer, Bonded		Appelez-nous	-
20	WP854334		Seal, Evaporator Top   (Replaces: 1180697)				$ 13.94
21	WP854334		Seal, Hood   (Replaces: 1180698)				$ 13.94
22	WP854334		Seal, Exhaust Door   (Replaces: 1180700)				$ 13.94
23	WP854334		Seal, Housing Top   (Replaces: 1180699)				$ 13.94
24	1180070		Seal, Condenser Top Cover		Appelez-nous	-
25	1162616		Seal, Anti-rub		Appelez-nous	-
26	1180905		Insulation (back, Dividing Wall)		Appelez-nous	-
27	1180928		Insulation (side, Dividing Wall)		Appelez-nous	-
30	1161561		Screw 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
