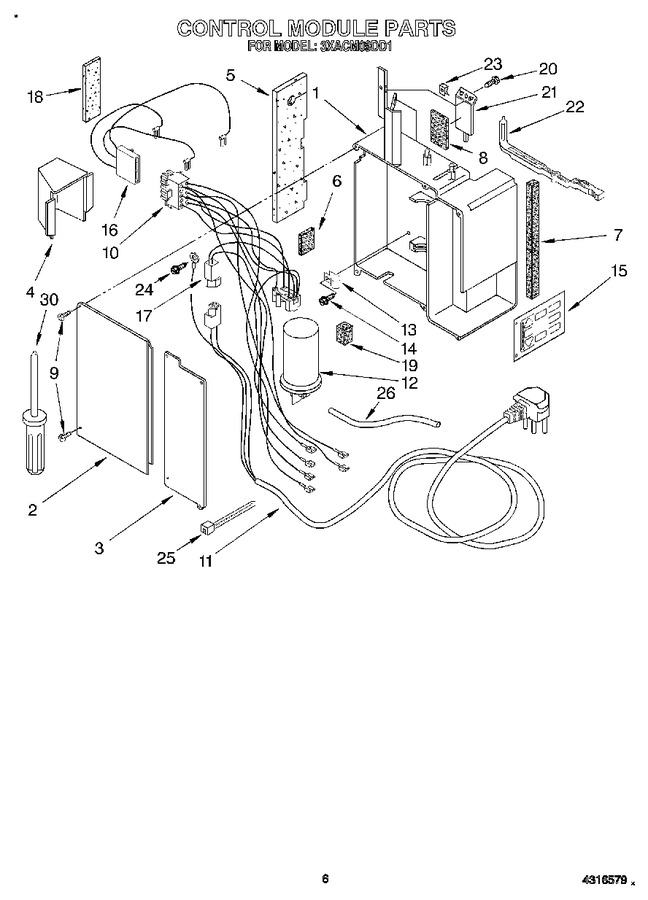

01 - Unit, Literature
02 - Cabinet
03 - Air Flow
04 - Control Module
05 - Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1180037 | Lid, Capacitor |
|
- | |||||
| 3 | 1180448 | Lid, Controls |
|
- | |||||
| 4 | 1180332 | Shield, Rain |
|
- | |||||
| 5 | 1180841 | Seal, Tube |
|
- | |||||
| 6 | 1180958 | Seal |
|
- | |||||
| 7 | 1180957 | Seal |
|
- | |||||
| 8 | 1180898 | Seal, Door |
|
- | |||||
| 9 | 1180780 | Screw (tamper- Resistant) |
|
- | |||||
| 11 | 1181175 | Cable, Appliance |
|
- | |||||
| 12 | 1162592 | Capacitor |
|
- | |||||
| 13 | 1180504 | Relief, Strain |
|
- | |||||
| 14 | 1180668 | Screw No.8 |
|
- | |||||
| 15 | 1181136 | Overlay (english) |
|
- | |||||
| 16 | 1158044 | Harness, Wiring (compressor) |
|
- | |||||
| 18 | 1162616 | Seal, Anti-rub |
|
- | |||||
| 19 | 1180340 | Spacer |
|
- | |||||
| 20 | 489392 | Screw (Replaces: 1180485) |
|
$ 14.02 | |||||
| 21 | 1180041 | Door, Exhaust |
|
- | |||||
| 22 | 1180042 | Linkage, Exhaust Door |
|
- | |||||
| 23 | 1157140 | Clip |
|
- | |||||
| 24 | 1181070 | Screw, Ground |
|
- | |||||
| 25 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 8.30 | |||||
| 26 | 1181142 | Sleeve, Insulating |
|
- | |||||
| 30 | 1180960 | Control Box (complete) |
|
- | |||||
| 30 | 4387015 | Screwdriver (for Tamper Proof Screw) |
|
- |
