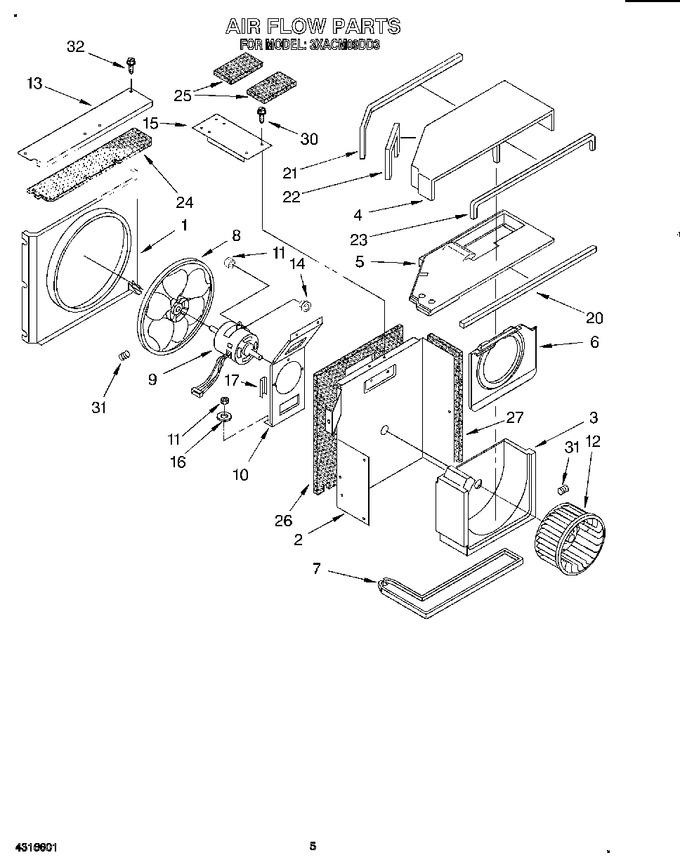

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180015		Shroud, Condenser		Appelez-nous	-
2	1181502		Wall, Dividing		Appelez-nous	-
3	1180334		Scroll, Air Housing		Appelez-nous	-
4	1180336		Hood, Air Housing		Appelez-nous	-
5	1180487		Cover, Evaporator Top		Appelez-nous	-
6	1180335		Orifice, Air Housing		Appelez-nous	-
7	1180333		Pan, Drain		Appelez-nous	-
8	1181209		Blade, Fan		Appelez-nous	-
9	1180834		Motor, Fan		Appelez-nous	-
10	1180011		Bracket, Motor Mount		Appelez-nous	-
11	1180008		Nut, Hex 5mm		Appelez-nous	-
12	1181206		Wheel, Blower		Appelez-nous	-
13	1180134		Cover, Condenser Top		Appelez-nous	-
14	1180535		Grommet, Fan Motor		Appelez-nous	-
15	1181483		Support, Unit		Appelez-nous	-
16	1180415		Washer, Bonded		Appelez-nous	-
17	1181501		Guard, Edge		Appelez-nous	-
20	WP854334		Seal, Exhaust (evaporator Top)   (Replaces: 1181223)				$ 13.94
21	WP854334		Seal, Hood Exhaust   (Replaces: 1181222)				$ 13.94
22	WP854334		Seal, Exhaust Door   (Replaces: 1180700)				$ 13.94
23	WP854334		Seal, Housing Top   (Replaces: 1180699)				$ 13.94
24	1181247		Seal, Condenser Top Cover		Appelez-nous	-
25	1162616		Seal, Anti-rub		Appelez-nous	-
26	1180905		Insulation (back, Dividing Wall)		Appelez-nous	-
27	1180928		Insulation (side, Dividing Wall)		Appelez-nous	-
30	1180816		Screw No.8 X 1		Appelez-nous	-
32	WP1163283		Screw   (Replaces: 1163283)				$ 7.55

    View Diagram in Separate Window       Print Part List
