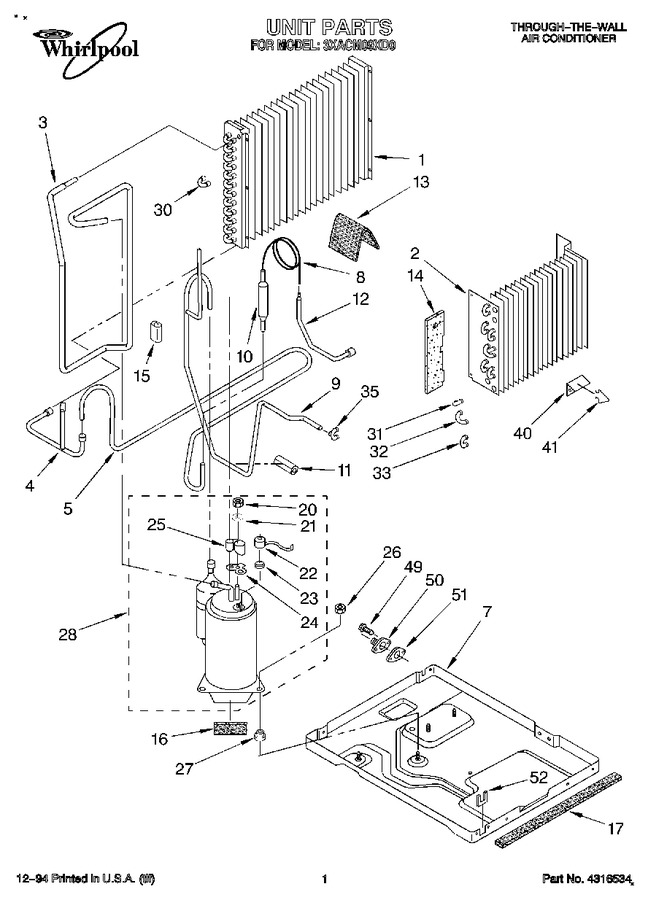

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180018		Condenser		Appelez-nous	-
2	1180086		Evaporator		Appelez-nous	-
3	1180093		Tube, Discharge		Appelez-nous	-
4	1180684		Tube, Process		Appelez-nous	-
5	1180459		Tube, Wet Loop		Appelez-nous	-
7	1180369		Base		Appelez-nous	-
8	1180553		Tube, Restrictor		Appelez-nous	-
9	1180551		Tube, Suction (includes No. 35)		Appelez-nous	-
10	1180357		Strainer		Appelez-nous	-
11	1163850		Dampener 3/8		Appelez-nous	-
12	1180562		Tube, Evaporator Inlet (row 2)		Appelez-nous	-
12	1180029		Tube, Evaporator Inlet (row 1)		Appelez-nous	-
13	1162650		Insulation, Restrictor Tube		Appelez-nous	-
14	1180841		Seal, Tube		Appelez-nous	-
15	1162344		Dampener-5/16		Appelez-nous	-
16	1162616		Seal, Anti-rub		Appelez-nous	-
17	1180908		Seal		Appelez-nous	-
20	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.78
21	950037		Gasket, Nut		Appelez-nous	-
22	1180079		Protector, Overload		Appelez-nous	-
23	950032		Spring, Overload		Appelez-nous	-
24	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 86.68
25	WP950036		Cover, Terminal   (Replaces: 950036)				$ 10.92
26	1180339		Nut, 8mm		Appelez-nous	-
27	WP950021		Grommet, Compressor Mounting   (Replaces: 950021)				$ 87.77
28	1180078		Compressor		Appelez-nous	-
30	708532		Bend, Return (12)		Appelez-nous	-
31	997669		Bend, Return (1)		Appelez-nous	-
32	1156529		Bend, Return (1)		Appelez-nous	-
33	855199		Bend, Return (5)		Appelez-nous	-
35	1158906		Bend, Return 3-way		Appelez-nous	-
40	1164141		Anticipator		Appelez-nous	-
41	475577		Clip, Anticipator		Appelez-nous	-
49	1180668		Screw No.8		Appelez-nous	-
50	1163502		Drain Plug		Appelez-nous	-
51	1164093		Gasket, Drain Plug		Appelez-nous	-
52	1180428		Owners Manual/ Installation Instructions		Appelez-nous	-
52	1180387		Protector, Cord		Appelez-nous	-
52	1180682		Wiring Diagram		Appelez-nous	-
