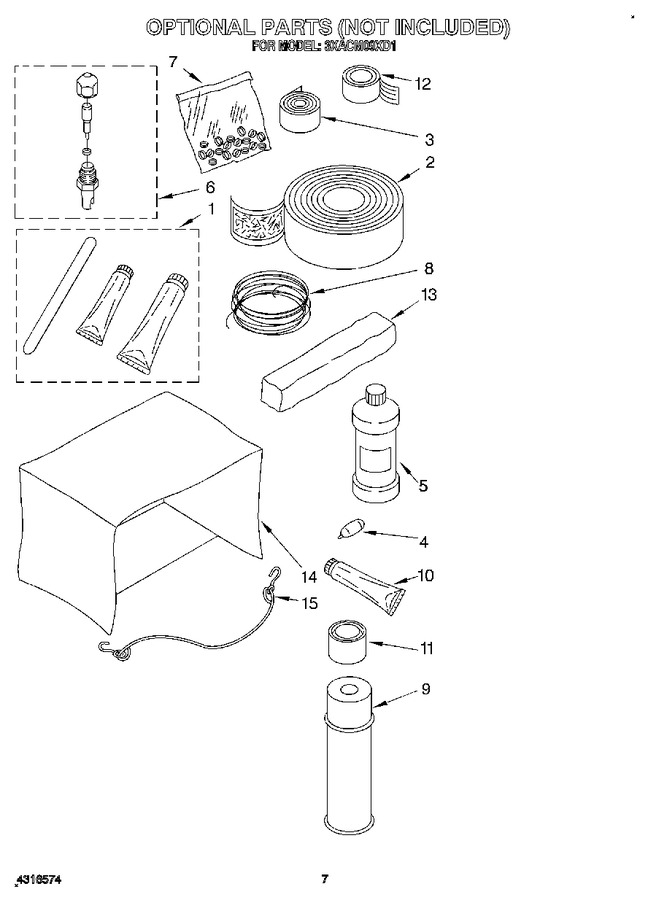

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	799833		Epoxy, Tube (aluminum Repair)		Appelez-nous	-
2	505168		Tape, No Drip 30`		Appelez-nous	-
3	479502		Tape, Vinyl 36`				$ 66.77
4	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
5	99243		Oil, Turbine 8 Fl. Oz.		Appelez-nous	-
6	978026		Valve Access (5/16`` Tube O.d.)			Immediately	$ 134.49
6	876764		Valve, Access(3/16``)			Immediately	$ 95.92
6	978028		Valve, Access (1/2`` Tube O.d.)		Appelez-nous	-
6	978029		Valve, Access (5/8`` Tube O.d.)				$ 93.85
6	978030		Valve, Access (3/4`` Tube O.d.)				$ 137.25
6	WP978025		Valve, Access (1/4`` Tube O.d.)   (Replaces: 978025)			Immediately	$ 110.51
6	SF5538		Valve, Access (3/8`` Tube O.d.)   (Replaces: 978027)				$ 18.65
7	978865		Seal, Ring (access Valve) (20 - Pack)		Appelez-nous	-
8	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
8	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
8	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
8	242826		Wire, 25`` Roll (white 14 Ga.)		Appelez-nous	-
8	47261		Wire, 25`` Roll (black 12 Ga.)		Appelez-nous	-
8	299885		Wire, 25` Roll (red 12 Ga.)		Appelez-nous	-
8	47263		Wire, 25`` Roll (white 12 Ga.)		Appelez-nous	-
9	813684		Adhesive, Insulation (24 Oz. Spray)		Appelez-nous	-
10	WP279368		Adhesive, Insulation (2oz Tube)   (Replaces: 279368)			Immediately	$ 116.46
11	485426		Paint, Touch-up Starlight Gray 1/2 Pint (lacquer)		Appelez-nous	-
12	212643		Sealer, Permagum 4 - 1` Strips			Immediately	$ 96.42
13	4318168		Sealer, Permagum 1 Lb. Bar   (Replaces: 99344)			Immediately	$ 83.13
14	484069		Cover, Winter (27 X 19 X 6 To 27``)				$ 62.49
14	484184		Cover, Winter (22``x15``x3 To 18``)				$ 64.85
14	484066		Cover, Winter (28 X 19 X 31``)				$ 86.51
14	484067		Cover, Winter (19``x12``x14``)				$ 85.58
15	813610		Retainer, Cord (winter Cover)				$ 5.71
