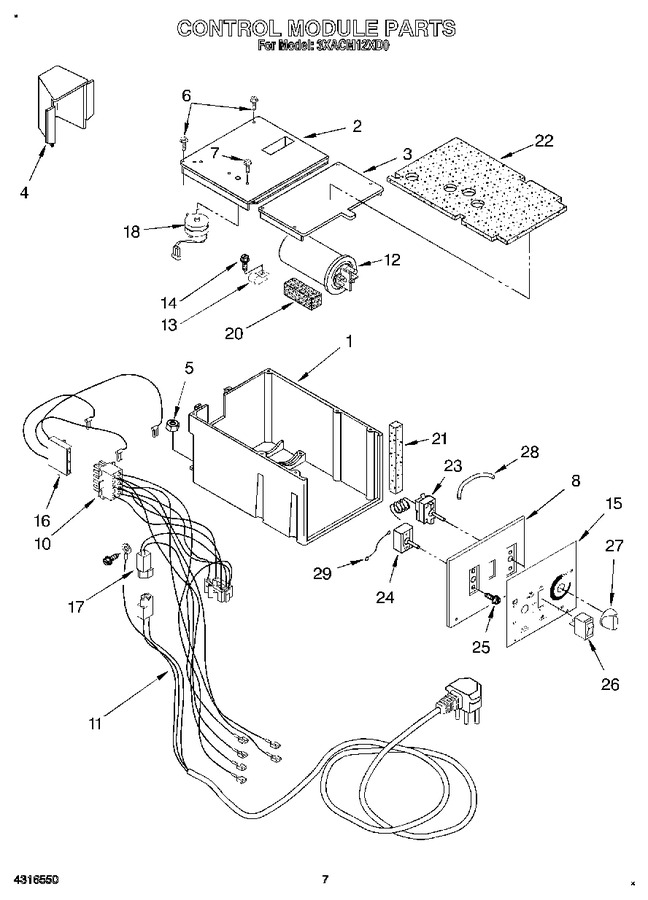

04 - Control Module


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1180175		Lid, Capacitor		Appelez-nous	-
3	1180456		Lid, Controls		Appelez-nous	-
4	1180332		Shield, Rain		Appelez-nous	-
5	1180008		Nut, Hex 5mm		Appelez-nous	-
6	1180780		Screw (tamper- Resistant)		Appelez-nous	-
7	489392		Screw No.6   (Replaces: 1180485)				$ 14.02
8	1180439		Plate, Control		Appelez-nous	-
11	1180036		Cable, Appliance		Appelez-nous	-
12	1180889		Capacitor		Appelez-nous	-
13	1180504		Relief, Strain		Appelez-nous	-
14	1180668		Screw No.8		Appelez-nous	-
15	1180436		Escutcheon		Appelez-nous	-
16	1180892		Harness, Wiring (compressor)		Appelez-nous	-
18	1180355		Motor, Air Swing (not Included In Complete Assembly)		Appelez-nous	-
20	1180340		Sealer, Foam		Appelez-nous	-
21	WP854334		Seal, Spacer   (Replaces: 1180845)				$ 13.94
22	1180418		Seal, Control Box		Appelez-nous	-
23	1157605		Control, Temp.		Appelez-nous	-
24	1157650		Switch, Rotary		Appelez-nous	-
25	488734		Screw, 6-32 X .175		Appelez-nous	-
26	WP4314961		Switch, Rocker   (Replaces: 1180490)				$ 93.95
27	1180739		Knob (2)		Appelez-nous	-
28	1180974		Sleeve, Insulator		Appelez-nous	-
29	1180464		Control Box (complete)		Appelez-nous	-
29	1180973		Wire, Ground		Appelez-nous	-
