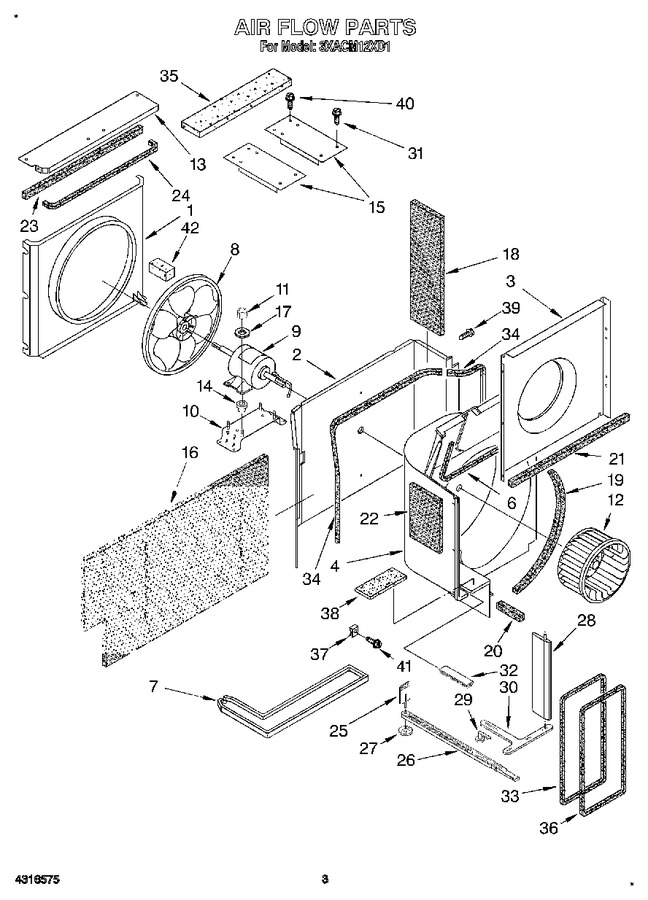

02 - Air Flow


03 - Cabinet


04 - Control Module


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180161		Shroud, Condenser		Appelez-nous	-
2	1180146		Wall, Dividing		Appelez-nous	-
3	1180154		Shroud, Evaporator		Appelez-nous	-
4	1180151		Housing, Air		Appelez-nous	-
6	1181053		Seal (housing/hp Cover)		Appelez-nous	-
7	1180152		Pan, Drain		Appelez-nous	-
8	1180164		Blade, Fan		Appelez-nous	-
9	1180150		Motor, Fan		Appelez-nous	-
10	1180149		Bracket, Motor Mount		Appelez-nous	-
11	1180008		Nut, Hex 5mm		Appelez-nous	-
12	1180229		Wheel, Blower		Appelez-nous	-
13	1180362		Cover, Condenser Top		Appelez-nous	-
14	1180408		Grommet, Fan Motor		Appelez-nous	-
15	1180043		Support, Unit		Appelez-nous	-
16	1181007		Insulation (back, Dividing Wall)		Appelez-nous	-
17	1180415		Washer, Bonded		Appelez-nous	-
18	1181008		Insulation (side, Dividing Wall)		Appelez-nous	-
20	1180636		Seal		Appelez-nous	-
21	WP854334		Seal, Evaporator Shroud   (Replaces: 1180356)				$ 13.94
22	1180927		Seal, Air Housing (side)		Appelez-nous	-
23	WP854334		Seal, Condenser Top Cover   (Replaces: 1181013)				$ 13.94
24	1180757		Seal, Condenser Shroud		Appelez-nous	-
25	1180465		Door, Exhaust		Appelez-nous	-
26	1180177		Linkage, Exhaust Door		Appelez-nous	-
27	1180411		Retainer, Linkage		Appelez-nous	-
28	1180178		Louver, Verticle (3 Required)		Appelez-nous	-
29	1180180		Crank, Verticle Louver		Appelez-nous	-
30	1180181		Link, Verticle Louver		Appelez-nous	-
31	1161561		Screw 3/8		Appelez-nous	-
31	WP1163283		Screw 1/2   (Replaces: 1163283)				$ 7.55
32	1180400		Cover, Slot		Appelez-nous	-
33	WP854334		Seal, Air Housing Discharge   (Replaces: 1180461)				$ 13.94
34	1181047		Seal, Unit (2)		Appelez-nous	-
35	1181057		Seal, Condenser/unit Support		Appelez-nous	-
36	1181059		Foam, Air Housing		Appelez-nous	-
37	1157140		Clip, Mounting		Appelez-nous	-
38	1180932		Seal, Louver		Appelez-nous	-
39	1181070		Screw, Ground		Appelez-nous	-
40	1180816		Screw No.8 X 1		Appelez-nous	-
41	489392		Screw No.6   (Replaces: 1180485)				$ 14.02
42	1180637		Seal, Spacer		Appelez-nous	-
