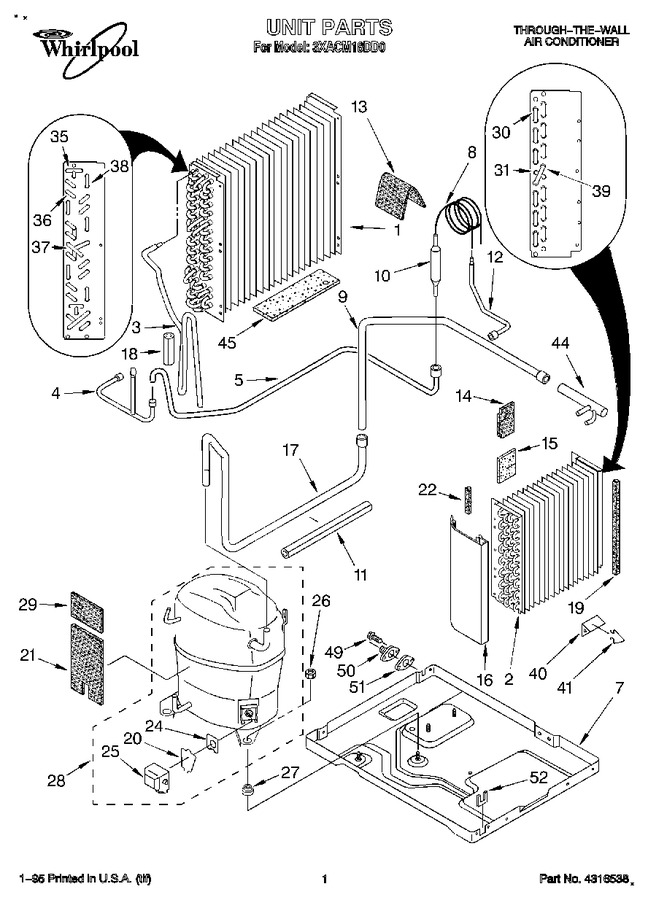

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Unit, Literature
02 - Air Flow
03 - Cabinet
04 - Control Module
05 - Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1180563 | Evaporator |
|
- | |||||
| 3 | 1180375 | Tube, Discharge |
|
- | |||||
| 4 | 1180287 | Tube, Process |
|
- | |||||
| 5 | 1180290 | Tube, Wet Loop |
|
- | |||||
| 7 | 1180243 | Base |
|
- | |||||
| 8 | 1180571 | Tube, Restrictor (2 Required) |
|
- | |||||
| 9 | 1180610 | Tube, Suction (evaporator) |
|
- | |||||
| 10 | 1181001 | Strainer |
|
- | |||||
| 11 | 1162321 | Dampener |
|
- | |||||
| 12 | 1180670 | Tube, Inlet (row 2) |
|
- | |||||
| 12 | 1180669 | Tube, Inlet (row 1) |
|
- | |||||
| 13 | 1162616 | Seal, Anti-rub |
|
- | |||||
| 14 | 1180414 | Seal, Suction Tube |
|
- | |||||
| 15 | 1180496 | Seal, Inlet Tube |
|
- | |||||
| 16 | 1180289 | Cover, Hair Pin |
|
- | |||||
| 17 | 1180612 | Tube, Suction (compressor) |
|
- | |||||
| 18 | 1162344 | Dampener, Tube |
|
- | |||||
| 19 | WP854334 | Seal (Replaces: 1180964) |
|
$ 13.94 | |||||
| 20 | 1161083 | Retainer, Terminal Cover |
|
- | |||||
| 21 | 1180858 | Seal (compressor) |
|
- | |||||
| 22 | 1180971 | Seal (cover) |
|
- | |||||
| 24 | 1161082 | Gasket, Terminal Cover |
|
- | |||||
| 25 | 1161076 | Cover, Terminal |
|
- | |||||
| 26 | 1180339 | Nut, 8mm |
|
- | |||||
| 27 | 1165973 | Grommet, Compressor Mounting |
|
- | |||||
| 28 | 1180220 | Compressor |
|
- | |||||
| 29 | 1180840 | Pad, Dampening |
|
- | |||||
| 30 | 855199 | Bend, Return (12 Required) |
|
- | |||||
| 31 | 997669 | Bend, Return (1) |
|
- | |||||
| 35 | 1156107 | Bend, Return 3-way (2 Required) |
|
- | |||||
| 36 | 708532 | Bend, Return (14 Required) |
|
- | |||||
| 37 | 1156329 | Bend, Return (2 Required) |
|
- | |||||
| 38 | 708531 | Bend, Return (5 Required) |
|
- | |||||
| 39 | 1156529 | Bend, Return (1) |
|
- | |||||
| 40 | 1164141 | Anticipator |
|
- | |||||
| 41 | 475577 | Clip, Anticipator |
|
- | |||||
| 44 | 1180568 | Manifold, Suction |
|
- | |||||
| 45 | 1180926 | Deflector, Water (foam) |
|
- | |||||
| 49 | 1180668 | Screw No.8 X 3/8 |
|
- | |||||
| 50 | 1163502 | Drain Plug |
|
- | |||||
| 51 | 1164093 | Gasket, Drain Plug |
|
- | |||||
| 52 | 1180435 | Deluxe Remote Owners Manual |
|
- | |||||
| 52 | 1180387 | Protector, Cord |
|
- | |||||
| 52 | 1180477 | Wiring Diagram |
|
- | |||||
| 52 | 1180137 | Owners Manual/installation Instructions |
|
- |
