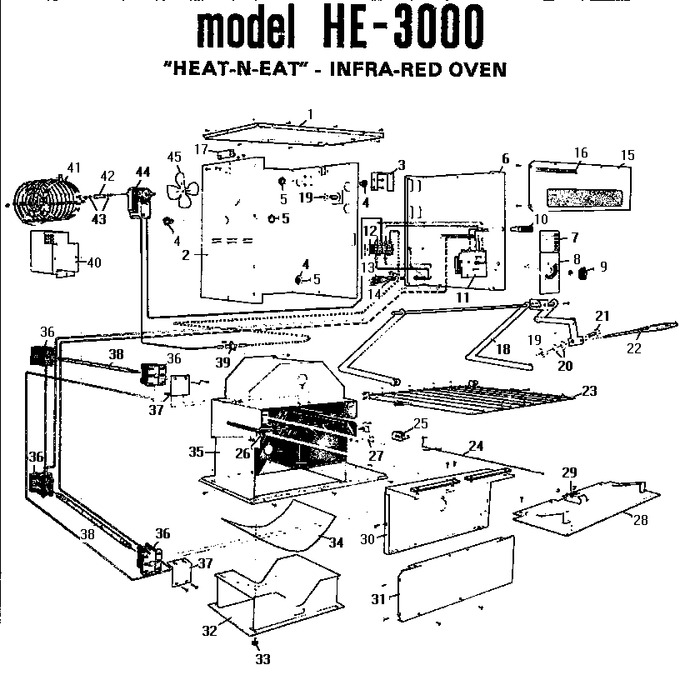

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	18358		Top Cover		Appelez-nous	-
1	5058-DD		Screw, Guard Mtg.		Appelez-nous	-
2	Y19145		Outer Wrapper Asm.		Appelez-nous	-
3	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
3	18370		``u`` Bracket		Appelez-nous	-
3	5057-G		Nut Guard Mtg.		Appelez-nous	-
4	18395		Bushing		Appelez-nous	-
5	18396		Locknut		Appelez-nous	-
6	18367		Instrument Panel		Appelez-nous	-
7	52009-104		Decal, Time Settings   (Replaces: 18431)			Immediately	$ 17.59
8	18432		Decal, Dial Timer			Immediately	$ 78.21
9	18388		Timer Knob		Appelez-nous	-
10	18021		Cook Light		Appelez-nous	-
11	18387		Nut, Timer Mtg.		Appelez-nous	-
11	18386		Timer		Appelez-nous	-
12	18398		Terminal Block		Appelez-nous	-
12	5057-G		Nut Guard Mtg.		Appelez-nous	-
12	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
13	20496		Power Cord		Appelez-nous	-
14	13534		Strain Relief		Appelez-nous	-
15	Y18356		Front Upper Outer Panel		Appelez-nous	-
15	5058-DD		Screw, Guard Mtg.		Appelez-nous	-
16	10390-T501		Decal, ``heat-n-eat``   (Replaces: 18434)			Immediately	$ 73.59
17	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
17	18363		Lamp Mtg. Bracket		Appelez-nous	-
17	5057-G		Nut Guard Mtg.		Appelez-nous	-
18	18399		Knurled Rivet End Nut		Appelez-nous	-
18	5057-G		Nut Guard Mtg.		Appelez-nous	-
18	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
18	18361		Linkage Asm.		Appelez-nous	-
19	5007-DD		Hex Nut, Pivot Bkt. Arm. Mtg.		Appelez-nous	-
20	5004-H		Spacer - Washer, Pivot Blk.		Appelez-nous	-
21	5007-CC		Bolt, Pivot Bkt. Arm Mtg.		Appelez-nous	-
22	18380		Hand Lever		Appelez-nous	-
23	19084		Tray Asm.		Appelez-nous	-
24	5058-L		Nut, Rod Mtg.		Appelez-nous	-
24	18378		Door Rod, Long		Appelez-nous	-
25	18382		Door Spring		Appelez-nous	-
26	18359		Left Roller Bkt. Asm.		Appelez-nous	-
26	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
26	5057-G		Nut Guard Mtg.		Appelez-nous	-
27	18360		Right Roller Bkt. Asm.		Appelez-nous	-
27	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
27	5057-G		Nut Guard Mtg.		Appelez-nous	-
28	18368		Door Asm.		Appelez-nous	-
28	5058-DD		Screw, Guard Mtg.		Appelez-nous	-
28	18357		Door Shims			Immediately	$ 86.04
29	18375		Bumper Pin		Appelez-nous	-
30	18369		Front Inner Lower Panel		Appelez-nous	-
30	5058-DD		Screw, Guard Mtg.		Appelez-nous	-
31	Y18355		Front Outer Lower Panel		Appelez-nous	-
31	5058-DD		Screw, Guard Mtg.		Appelez-nous	-
32	18366		Mirror Base Bottom		Appelez-nous	-
33	18390		Rubber Bumper Legs		Appelez-nous	-
34	T20351		Disposable Reflector 100/per C   (Replaces: 18400)				$ 40.30
35	18992		Inner Oven Asm.		Appelez-nous	-
36	5057-G		Nut Guard Mtg.		Appelez-nous	-
36	5057-O		No.6 Pan Hd Machine Screw		Appelez-nous	-
36	18853		Lamp Mtg. Blocks		Appelez-nous	-
36	18377		Spacer Washer, Block Mtg.		Appelez-nous	-
37	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
37	5057-G		Nut Guard Mtg.		Appelez-nous	-
37	18363		Lamp Mtg. Bracket		Appelez-nous	-
38	18381		800 Watt Quartz Lamp		Appelez-nous	-
39	18374		Thermostat		Appelez-nous	-
39	5057-G		Nut Guard Mtg.		Appelez-nous	-
39	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
40	5058-DD		Screw, Guard Mtg.		Appelez-nous	-
40	18401		Vented Motor Guard		Appelez-nous	-
41	5057-G		Nut Guard Mtg.		Appelez-nous	-
41	18371		Fan Guard Cage		Appelez-nous	-
41	5057-N		No.6 Pan Hd Machine Screw		Appelez-nous	-
42	18376		Motor Spacer		Appelez-nous	-
43	5027-DD		Spacer, Washer Flat		Appelez-nous	-
44	5057-MM		Hex Nut, Spacer, Motor To Guar		Appelez-nous	-
44	18373		Fan Motor With Special Leads		Appelez-nous	-
44	5057-NN		Acorn Nut, Guard To Motor Mtg.		Appelez-nous	-
45	18397		Loctite Sealant		Appelez-nous	-
45	5050-U		Harness Wire, Supplied Bulk, O		Appelez-nous	-
45	18372		Fan Blade		Appelez-nous	-
45	19807		Cello Bags		Appelez-nous	-
45	Y19806		Cello Bags		Appelez-nous	-
45	19808		Cello Bags		Appelez-nous	-
