SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Air Flow


09 - Control


10 - Unit


11 - Ice Maker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

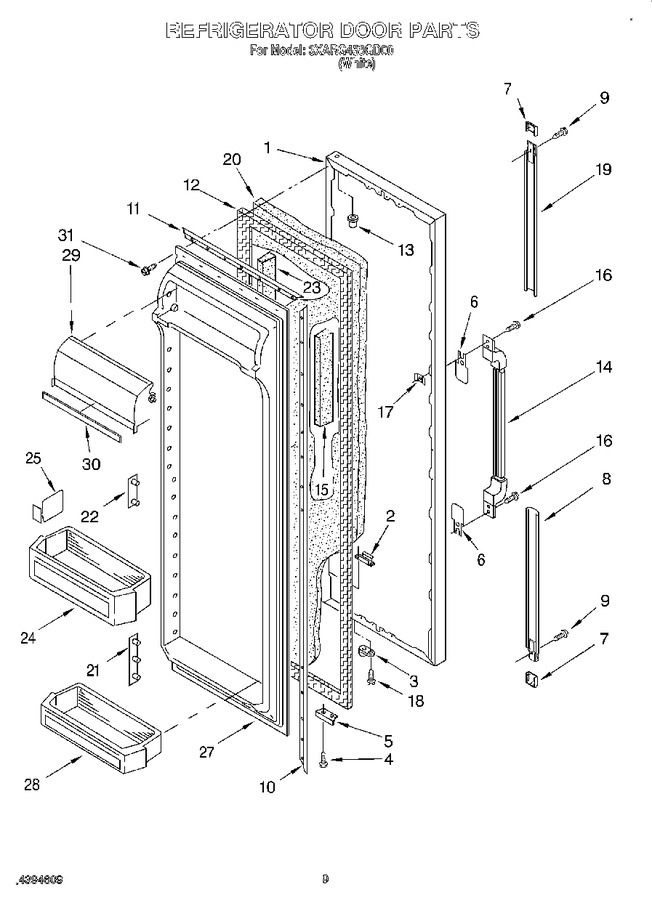

1	4362040		Refrigerator Door Panel (also Order Item 20)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	2155332		Bracket, Door Stop		Appelez-nous	-
6	2179399		Shim		Appelez-nous	-
7	2174006		End Cap (2)		Appelez-nous	-
8	2174282		Extension, Bottom		Appelez-nous	-
9	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2194697		Handle, Center		Appelez-nous	-
15	1119055		Door Dike, Handle Side		Appelez-nous	-
16	WP489463		Screw   (Replaces: 489463)				$ 8.25
17	941242		Screw Anchor		Appelez-nous	-
18	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
19	2174276		Extension, Top		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	1116986		Pin Plate				$ 12.10
22	1118048		Pin Plate		Appelez-nous	-
23	1115379		Door Dike, Hinge Side		Appelez-nous	-
24	2177882		Door Bin, Deep (2)		Appelez-nous	-
25	2152335		Divider, Bin		Appelez-nous	-
27	1129278		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2177883		Door Bin (2)		Appelez-nous	-
29	2148289		Compartment Door		Appelez-nous	-
30	2162896		Trim, Door Compartment		Appelez-nous	-
31	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
