SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door

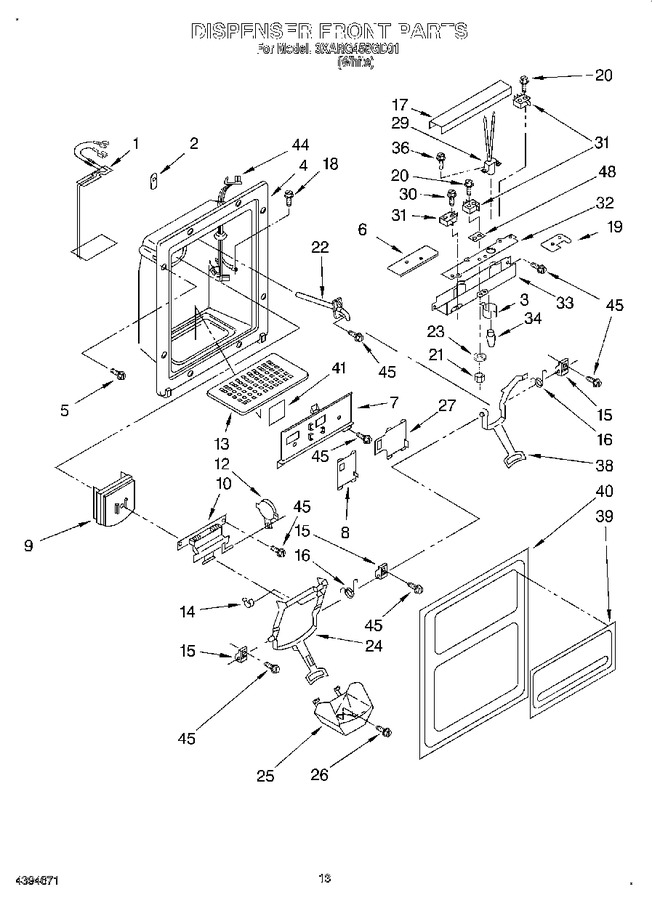

07 - Dispenser Front


08 - Airflow


09 - Control


10 - Unit


11 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2181930		Heater, Dispenser		Appelez-nous	-
2	987048		Grommet		Appelez-nous	-
3	2166858		Shroud		Appelez-nous	-
4	1124715		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
6	2175226		Guard, Switch		Appelez-nous	-
7	2152717		Frame, Slides		Appelez-nous	-
8	2152720		Slide, Cube/crush Switch		Appelez-nous	-
9	2147168		Door, Ice				$ 33.13
10	2147167		Door Mechanism Assembly (includes Item 9)				$ 64.67
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 223.72
13	1126120		Grille, Overflow		Appelez-nous	-
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	2147165		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw   (Replaces: 488500)				$ 11.40
19	2175227		Guard, Switch		Appelez-nous	-
20	00488362		Screw (6)   (Replaces: 488362)				$ 144.58
21	489476		Nut (4)				$ 21.14
22	WP4388152		Water Fitting Assembly   (Replaces: 2157744)				$ 290.25
23	486734		Washer (4)		Appelez-nous	-
24	2177144		Lever, Ice Dispenser				$ 42.05
25	1124730		Guide, Ice				$ 19.06
26	488892		Screw		Appelez-nous	-
27	2152726		Slide, Light Switch		Appelez-nous	-
29	2166862		Lamp Holder		Appelez-nous	-
30	488361		Screw		Appelez-nous	-
31	WP2162361		Switch (4)   (Replaces: 2162361)			Immediately	$ 28.71
32	2147164		Insulator, Control Bracket		Appelez-nous	-
33	2147163		Bracket, Control		Appelez-nous	-
34	989331		Bulb, Light		Appelez-nous	-
36	WP489128		Screw   (Replaces: 488500)				$ 11.40
38	2177149		Lever, Water Dispenser				$ 37.42
39	2175023		Plaque, Front Cover		Appelez-nous	-
40	2175130		Front Cover, Housing (includes Item 39)		Appelez-nous	-
41	2147172		Heat Shield, Frame		Appelez-nous	-
44	2147166		Wiring Harness, Door		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 9.05
48	625834		Spacer				$ 7.99

    View Diagram in Separate Window       Print Part List
