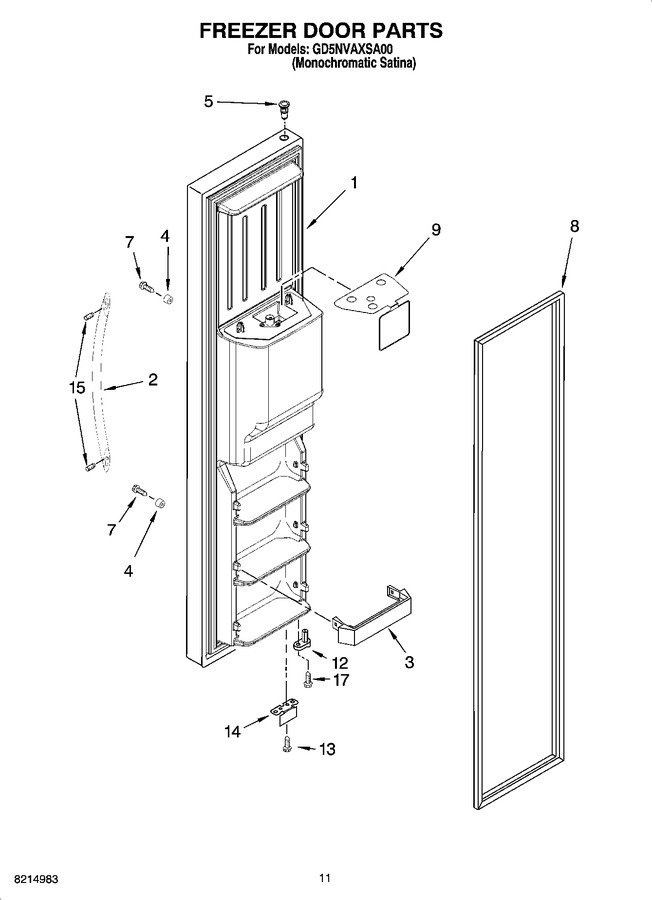

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2318849LZ | Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Satina) |
|
- | |||||
| 2 | 2319729S | Handle (universal Silver) |
|
- | |||||
| 3 | WP2171157 | Trivet (3) (Replaces: 2171157K) |
|
$ 57.33 | |||||
| 4 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.69 | ||||
| 5 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 7 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221303) |
|
$ 293.13 | |||||
| 9 | 2305474 | Safety Barrier |
|
- | |||||
| 12 | WP2223752 | Door Closer, Upper Cam (Replaces: 2223752) |
|
$ 19.04 | |||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 14 | 2303113 | Bracket, Door Stop (chrome) |
|
- | |||||
| 15 | W11366418 | Screw (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 17 | 2317709 | Tube, Water Dispenser |
|
- | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 17 | 2310084 | Wire Assembly, Freezer Door |
|
- |
